Impact Crusher

Impact crusher is the machine which breaks materials using the impact energy. It is important equipment for secondary crushing and widely applied in mining, transportation, energy, construction and chemical industry. PF impact crusher can process many kinds of materials with max feed size less than 500mm and crushing strength less than 360 MP(such as limestone, gypsum, concrete, etc.).

SHARE TO:

Processing Materials

Metallic and non-metallic ores (gold, silver, copper, tantalum, barite, tungsten, quartz, coal, limestone etc.), aggregate (rocks, river stone, blast rock, lava rock), construction waste (asphalt, concrete, bricks, pavers, etc.), and some other materials.

Application Range

Impact crusher can handle materials with a side length of 100-500 mm or less, with a pressure resistance of up to 350 MPa, and has the advantages of a large crushing ratio, and the crushed materials are cubic particles. It is widely used in construction materials, ore crushing, railway, highway, energy, transportation, energy, cement, mining, chemical industry and other industries for medium and fine crushed materials. The discharge particle size can be adjusted, and the crushing specifications are diverse.

Advantages and Characteristics

1. Multiple chamber can make it evenly and suitable for crushing hard rock

2. Large low feed port makes it easy to layout production line and increase the feed size

3. New wear-resistant material of the plate hammer, impact plate and liner can last longer life

4. High chrome hammer and unique counterattack lining board are particularly suitable for crushing hard rock and energy efficient

5. The entire plate hammer structure makes the materials particle size more smaller and cube-shaped

6. It uses fully hydraulic system, so it is easy and more convenient for maintenance and replacement of worn parts

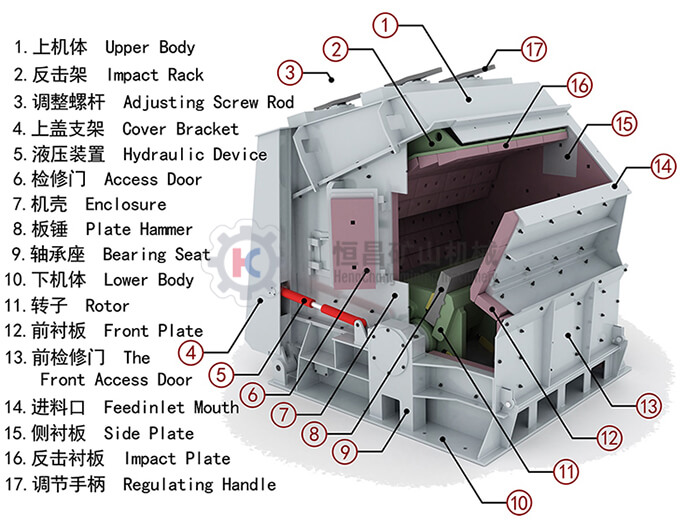

Product Structure

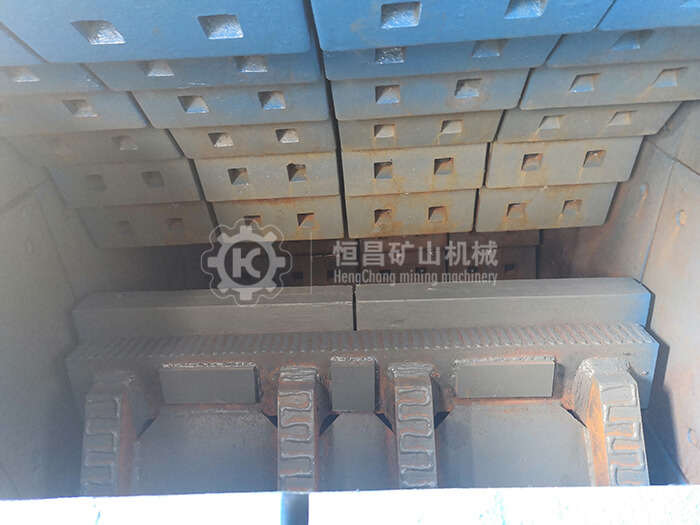

The rotor rotates of our impact crusher with a high speed driven by power motor when the machine is working. When the materials get into hammer effect area, they are impacting to break with the hammer on the rotor and then threw to the impacting position to take another crushing. After that they spring back to hammer impacting area from impact wrist plate to take crushing again. This procedure repeats itself. The materials get into 1, 2, 3 impact cavity from big to small to take repeated crushing. When the material is crushed to the required size, it’s discharged from the outlet. The material’s discharging size and shape can be changed through adjusting the gap between impact frame and rotator.

Technical Parameter

Model

Specification
(mm)

Max Feed Size
(mm)

Capacity
(t/h)

Power
(kw)

Dimension
(mm)

Weight
(t)

PF-1007

Φ1000×700

250

15-30

37

2330×1660×2300

6.5

PF-1010

Φ1000×1050

250

30-80

75

2370×1700×2390

13

PF-1210

Φ1250×1050

300

60-120

110

2680×2160×2800

15

PF-1214

Φ1250×1400

300

100-160

132

2650×2460×2800

20

PF-1315

Φ1320×1500

300

100-180

180

3180×2720×3120

22

PF-1320

Φ1300×2000

300

150-250

200

3220×3100×3120

28

PF-1520

Φ1500×2000

300

180-320

220

3959×3564×3330

40

PF-1622

Φ1600×2200

350

400-600

250

4249×3664×3530

65

PF-1820

Φ1800×2000

400

500-800

280

4400×3866×4009

83
