2026 How to Choose the Right Double - Layer Shaking Table for Gold Ore Dressing?

2026-06-01

SHARE TO:

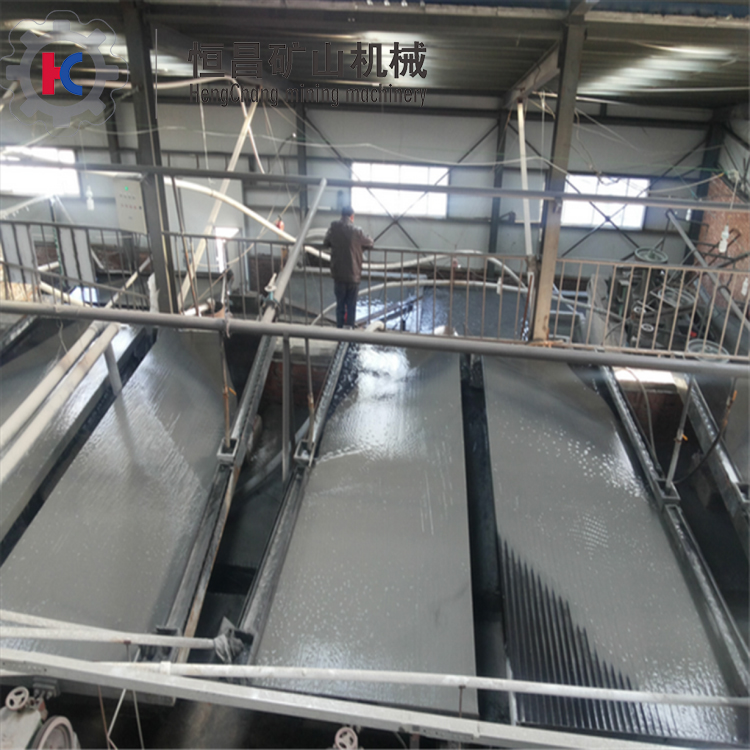

I. Introduction to Double - Layer Shaking Tables

Double - layer shaking tables are important equipment in gold ore dressing. They are mainly used for the separation of fine - grained materials, especially in the processing of gold ores.

A. Basic Function These tables can effectively separate gold particles from gangue based on differences in density, particle size, and shape. For example, in a gold mine, after crushing and grinding, the ore slurry is sent to the double - layer shaking table.

B. Importance in Gold Ore Dressing Gold is often found in small amounts and is mixed with other minerals. The double - layer shaking table helps to enrich the gold content step by step, increasing the efficiency of gold extraction.

II. Domestic and Foreign Use Cases

A. Domestic Case

In some small - scale gold mines in China, double - layer shaking tables play a crucial role. For instance, in a mine in Yunnan province, due to the complex geology, the gold ore contains a large amount of slime. The double - layer shaking table was able to effectively separate the gold from the slime, with an average gold recovery rate of over 80%.

B. Foreign Case

In South Africa, which has rich gold resources, many large - scale gold mines also use double - layer shaking tables. In a well - known gold mine in Johannesburg, they use advanced double - layer shaking tables combined with other beneficiation processes to ensure high - quality gold production.

III. Working Principle

The double - layer shaking table works by using a combination of water flow and table shaking.

Water Flow Action When the ore slurry is poured onto the table, the water flow carries the lighter gangue particles towards the tailings side.
The water flow speed and direction can be adjusted according to different ore properties.

Table Shaking The table shakes in a certain frequency and amplitude. This shaking motion makes the heavier gold particles move towards the concentrate side along with the inclined surface of the table under the action of gravity.

IV. Structural Characteristics

Double - Layer Design The upper layer is mainly for preliminary separation, and the lower layer is for further enrichment. This design improves the separation efficiency.

Adjustable Parameters Such as the slope of the table, shaking frequency, and water supply can be adjusted, allowing it to adapt to different types and properties of gold ores.

V. Applicable Ores

Gold - Sulfide Ores For example, pyrite - bearing gold ores. The double - layer shaking table can separate gold from pyrite effectively.

Gold - Quartz Ores In quartz - rich gold ores, it can distinguish gold particles from quartz grains.

VI. Advantages in Gold Ore Dressing

High Separation Accuracy It can accurately separate gold particles with small differences in density.

Low Energy Consumption Compared to some large - scale beneficiation equipment, its energy consumption is relatively low.

Simple Operation Operators can easily master the operation method after a short training period.

VII. Treatment Capacity Parameters

The treatment capacity of double - layer shaking tables varies depending on factors such as table size, shaking frequency, and ore properties.

Small - sized Tables Usually have a treatment capacity of about 1 - 5 tons per hour, suitable for small - scale gold mines or laboratories.

Large - sized Tables Can reach a treatment capacity of 10 - 20 tons per hour or more, meeting the needs of medium - sized gold mines.

VIII. Daily Operation and Maintenance

Operation Precautions Before starting, check whether the water supply system and shaking mechanism are normal.
During operation, pay attention to the changes in the separation effect and adjust parameters in time.

Maintenance要点日常操作维护 Regularly clean the table surface to prevent ore residue accumulation.
Check and ｒｅｐｌａｃｅ worn parts, such as bearings and shaking rods, in a timely manner.

IX. Comparison with Other Beneficiation Equipment

Compared with Flotation Cells Flotation cells are more suitable for the separation of floatable minerals, while double - layer shaking tables have better performance in the separation of fine - grained gold ores with high density differences.

Compared with Gravity Concentrators Gravity concentrators may require more complex installation and adjustment, while double - layer shaking tables are relatively simple and easy to operate.

X. Application Scenario Summary

Small - Scale Gold Mines Due to their low investment cost and simple operation, double - layer shaking tables are ideal choices for small - scale gold mines.

Laboratories In gold ore research laboratories, they can be used for sample preparation and beneficiation experiments.

When choosing a double - layer shaking table, [Jiangxi Hengchang Mining Machinery Equipment] is a great brand to consider. Their products have high quality and good performance, and they also provide good after - sales service. They can offer tables with different specifications and parameters to meet the various needs of gold ore dressing.

In conclusion, when choosing the right double - layer shaking table for gold ore dressing, we need to comprehensively consider factors such as ore properties, treatment capacity requirements, operation and maintenance costs. By understanding the characteristics and advantages of double - layer shaking tables, we can make more scientific and reasonable choices, thereby improving the efficiency and economic benefits of gold ore dressing.
