A wet ball mill is a type of grinding equipment that is widely used in industries such as mining, cement, ceramics, and chemical engineering to grind materials into fine powder with the assistance of water or other liquids. Here’s how it works:

🌟 How a Wet Ball Mill Works:

A wet ball mill operates by rotating a cylindrical drum that contains grinding media — typically steel balls, ceramic balls, or natural stones — along with the material to be ground and water (or another liquid).

🔧 Main Components:

• Cylinder (drum): The main body where grinding occurs.

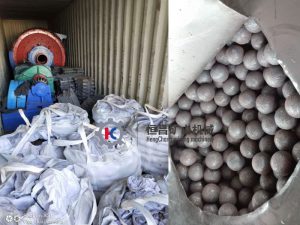

• Grinding media: Steel, ceramic, or stone balls that crush the material.

• Feed and discharge ports: For adding raw material and removing the slurry.

• Drive system: Includes motor, gearbox, and bearings to rotate the drum.

• Liner plates: Protect the cylinder and enhance grinding efficiency.

⚙️ Working Principle:

1. Loading:
• The raw material (in wet form or mixed with water) is fed into the drum through the feed port, along with the grinding media.

2. Rotation:
• The drum is rotated by a motor via a gearbox at a controlled speed (usually 60–75% of critical speed).

3. Grinding Action:
• As the drum rotates, centrifugal force causes the grinding media to lift up and then fall back onto the material.

• This impact, along with abrasion between the media and the material, breaks down the particles into smaller sizes.

• The presence of water helps in forming a slurry, which improves material flow, reduces dust, and aids in fine grind.

4. Discharge:
• The finely ground slurry is discharged through the outlet, often for further processing like separation, drying, or filtration.

✅ Advantages of Wet Ball Mills:

• Efficient for fine and ultra-fine grinding.

• Suitable for materials that need to be processed as slurries.

• Better temperature control due to the presence of liquid.

• Reduced dust generation, improving safety and environment.

🏭 Common Applications:

• Mining: Grinding ores before mineral extraction.

• Cement Industry: Preparing raw materials or grinding clinker.

• Ceramics & Pigments: Producing fine powders.

• Chemical & Pharmaceutical Industries: Mixing and grinding reactive substances.

In summary, a wet ball mill uses rotation, impact, and abrasion with the help of grinding media and liquid to efficiently reduce the size of materials, making it a vital machine in many industrial processes.
