2026 Multi-Deck Shaking Table for Tungsten Recovery: Specs, Price & On-Site Case Study
2026-06-02
If you are a tungsten mine owner, plant manager, or a procurement officer looking for efficient gravity separation equipment, you’ve probably heard that the shaking table is one of the most reliable tools for fine tungsten recovery. But here’s the catch: traditional single-deck tables often don’t give you enough processing capacity for medium to large-scale operations. That’s why the multi-deck shaking table—especially models like the 6-S or the new 2026 series—has become a game-changer.
In this article, we’ll take you through everything you need to know about the multi-deck shaking table for tungsten recovery, including specs, approximate pricing, and a real on-site case study. No jargon overload. Just practical, useful information for people in the mining business.
Tungsten (Wolframite and Scheelite) has a high specific gravity—around 7.2 to 7.5 g/cm³. That makes it a perfect candidate for gravity separation. But tungsten ore is often fine-grained, sometimes less than 2mm, which means a shaking table with good stratification is essential.
A multi-deck shaking table allows you to run multiple layers of separation simultaneously. For tungsten processing, this is huge: you can get a high-grade concentrate without needing multiple machines.
| Feature | Single-Deck | Multi-Deck (3 or 4 layers) |
|---|---|---|
| Capacity | 0.5-1.2 t/h | 1.5-4.8 t/h (for 4 decks) |
| Floor space per ton | Higher | More compact |
| Power consumption | Similar per deck | Lower per ton of ore |
| Maintenance | Easy | Moderate (more decks) |
| Price | Lower upfront | Higher but cost-effective long term |
Now let’s look at a specific 2026 model you should consider.
One of the most trusted brands in China’s mining equipment industry is Jiangxi Hengchang Mining Machinery. Their 2026 multi-deck shaking table is specifically designed for fine tungsten, tin, coltan, and other heavy minerals.
| Parameter | Value |
|---|---|
| Model | 6-S 4-Deck (2026 upgraded version) |
| Deck material | Fiberglass with rubber lining |
| Number of decks | 4 (can also do 3 or 2 layers on request) |
| Feed size | 0.074mm – 2mm |
| Capacity | 1.5 – 4.8 tons/hour |
| Concentration grade | 30–65% WO3 (depending on feed grade) |
| Recovery rate | 85–95% for fine tungsten |
| Power | 1.5 kW motor + gearbox |
| Weight | about 1.8 tons |
| Deck size | 4500 x 1850 mm per layer |
Bonus feature: The 2026 model has improved rifle pattern that reduces turbulence for fine particles. This is a big deal for scheelite recovery, which is notoriously tricky.
Let’s talk money. Prices vary based on configuration, motor type, and whether you add a feeder or not.
Pro tip: Many suppliers like Hengchang offer custom packages. If you already have a feeder, you can save money.

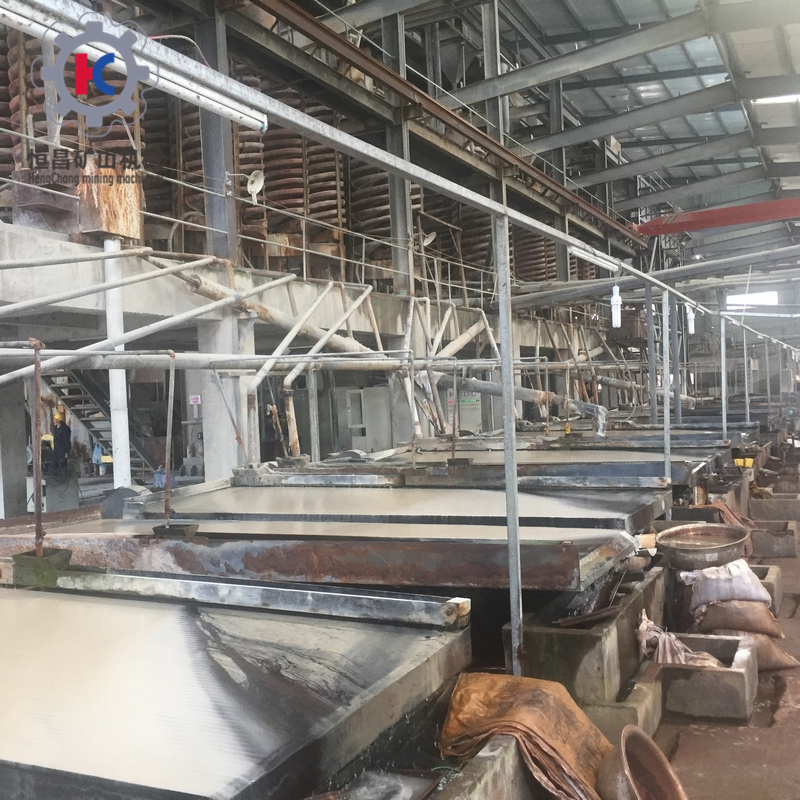

In late 2024, a medium-sized tungsten mine in Fujian province upgraded from two single-deck tables to one Jiangxi Hengchang 4-deck shaking table (2026 model). Here’s what happened.
They replaced the two single-deck tables with one 4-deck 2026 shaking table.
Feed: 2.1 t/h (after upgrading the gravity circuit).“We were skeptical at first, but the multi-deck design runs smoothly. The deck wear is better because of the rubber coating. We now produce higher grade concentrate and need less labor for maintenance.”
— Plant Manager, Fujian Tungsten Mine
For tungsten recovery, especially when your ore is fine (< 1mm), a multi-deck shaking table from Jiangxi Hengchang delivers better grade and recovery than a setup of several single-deck tables. And it costs less per ton processed.
You already know the basics. But for your team’s new operators, here’s the quick version.
Feed material mixed with water is fed onto the deck.In a multi-deck table, each layer does the same job. You just need a distributor to split the feed evenly.
Important: For best results, pre-concentrate with a spiral chute or jig machine first. The shaking table is great for cleaning the concentrate.
| Equipment | Best For | Capacity | Recovery | Cost |
|---|---|---|---|---|
| Jig Machine | Coarse tungsten (+2mm) | High | 70–85% | Moderate |
| Spiral Chute | Pre-concentration | Very high | 60–75% | Low |
| Multi-Deck Shaking Table | Fine tungsten (0.074–2mm) | Moderate | 85–95% | Moderate |
| Flotation | Scheelite chemical recovery | High | 80–90% | High (reagents) |
Bottom line: If fine tungsten is your target, a shaking table is the most cost-effective. Multi-deck gives you higher throughput without extra labor.
If you’re processing tungsten ore and struggling with low recovery or high operating costs, upgrading to a multi-deck shaking table like the 2026 model from Jiangxi Hengchang is probably your smartest move. It’s not just about capacity—it’s about getting more tungsten out of the same feed.
For a quick quote or to see a demo video, contact your local supplier or visit Jiangxi Hengchang’s factory in Shicheng, Jiangxi Province. They’re known for building robust machines that last.
Need help with equipment selection?
We can connect you with proven manufacturers. Just send your ore test report and target capacity.
Happy tungsten recovery — every grain counts!
