GT60 Gemini Shaking Table: High-Efficiency Gravity Concentration for Fine Minerals
GT60 Gemini Shaking Table: High-Efficiency Gravity Concentration for Fine Minerals
Industry News – As the global mining sector intensifies its focus on sustainable practices and the recovery of fine-grained precious metals, the GT60 Gemini Shaking Table has emerged as a preferred solution for small-to-medium scale operations. Designed for high enrichment ratios without the use of chemicals, this compact gravity separator is gaining traction across gold, tantalum, tin, and tungsten processing circuits worldwide.
Dual Decks, Double Recovery
This "twin-deck" configuration effectively doubles the processing footprint without increasing the equipment's floor space. It is particularly effective for particle sizes ranging from 0.03 mm to 2 mm, making it ideal for scavenging fines that are often lost in sluices or centrifugal concentrators. Operators report that the final concentrate is often of smelt-grade purity, significantly boosting overall plant yield.
Technical Specifications

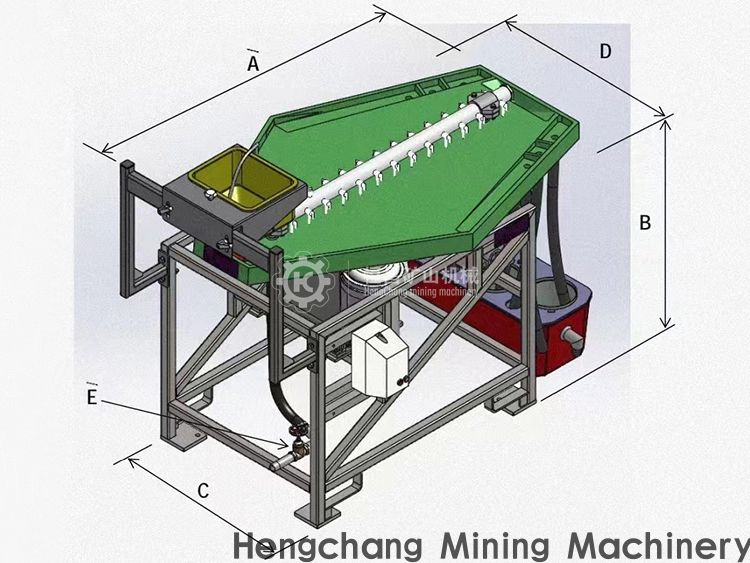

- Dimensions: Approx. 1490 × 1160 × 894 mm (Compact footprint)
- Drive Motor: 0.75 kW (Single-phase or 3-phase options available)
- Processing Capacity: Approx. 30 kg/h (Batch/Lab) or up to 1.5 t/h (Continuous feed, depending on ore type)
- Feed Size: ≤ 2 mm
- Recommended Slurry Density: 20% – 40%
- Water Requirement: Approx. 12 L/min @ 30 kPa
- Deck Material: Polypropylene (PP) or Stainless Steel with precision-molded riffles
- Weight: Approx. 150 – 235 kg
The unit’s modular design allows for quick deck changes between PP and stainless steel, catering to different ore abrasiveness and chemical environments.
Eco-Friendly and Cost-Effective Operations
Coupled with its low 0.75 kW power draw, the operational expenditure (OpEx) remains minimal. Maintenance is largely limited to routine checks of the spring assemblies and lubrication of the drive mechanism, ensuring a rapid return on investment (ROI), often within months for high-grade artisanal and small-scale mining (ASM) operations.
Versatile Applications Across the Industry
- Placer Gold Cleanup: Upgrading concentrates from sluice boxes or Knelson/centrifugal concentrators.
- Hard Rock Mineral Processing: Recovering fine Tantalum, Niobium, Tin (Cassiterite), and Tungsten (Wolframite).
- Geological Survey & Education: Providing accurate lab-scale gravity analysis for assay verification and metallurgical testing.
