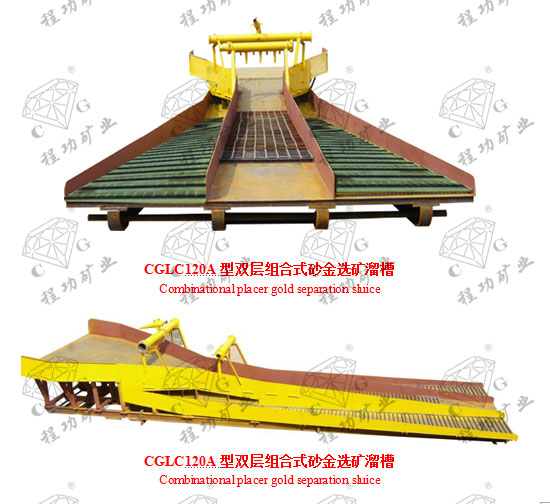

CGLC 120A型双层组合式砂金选矿溜槽是我院、厂生产的采金设备系列产品之一，经过多年的生产实验，多次改进、创新，产品的参数质量不断提高，深受国内外采金用户的好评，已被国家专利局授予专利权。
它具备以下特点：
1、金矿砂处理量大，每小时可洗矿砂 120 m3/h；
2、结构合理，强度高，可拆装性强，便于运输搬迁；
3、采金回收率高，回收率可达到80-85%，不但能回收粒状金片状金，还可回收微粒金；
4、适应性很强，可在任何条件的矿体内选矿。
| 矿砂处理量 | m3/h | 120 |
| 总用水量 | m3/h | 882 |
| 12"寸泵（主喷水管） | m3/h | 792 |
| 4"寸泵 | m3/h | 90 |
| 电机总容量 | kw | 37 |
| 12"寸泵电机功率 | kw | 22 |
| 4"寸泵电机功率 | kw | 7.5 |
| 主溜槽 | m | 5.8 |
| 副溜槽 | m | 7.3 |
| 溜槽宽度 | ||
| 主溜槽 | m | 1.0 |
| 副溜槽（上口） | m | 0.8 |
| 副溜槽（下口） | m | 1.1 |
| 溜格数 | ||
| 主溜格 | （个） | 8 |
| 副溜格（两边） | （个） | 22 |
| 溜槽安装角度 | （°） | 10~12 |
| 塑料毛毡总长 | m | 21 |
| 外形尺寸 | m | 12.3×4×2.2 |
| 总质量 | t | 11 |
| 型号规格 Model | CGLC120A | CGLC60A | CGLC40A | |
|---|---|---|---|---|
| 矿砂处理量Mineral sand handling capacity | m3/h | 120 | 60-80 | 40 |
| 总用水量Overall water consumption | m3/h | 882 | 882 | 585 |
| 12"寸泵（主喷水管）12'' pump (major water spray ipe） | m3/h | 792 | 792 | 540 |
| 4"寸泵4'' pump | m3/h | 90 | 90 | 45 |
| 电机总容量Overall capacity of motor | kw | 37 | 32 | 25 |
| 12"寸泵电机功率12''pump motor power | kw | 22 | 22 | 17 |
| 4"寸泵电机功率4''pump motor power | kw | 7.5 | 7.5 | 5.5 |
| 主溜槽Primary sluice | m | 5.8 | 5.8 | 5 |
| 副溜槽Secondary sluice | m | 7.3 | 7.3 | 6.2 |
| 溜槽宽度Sluice width | ||||
| 主溜槽Primary sluice | m | 1.0 | 1.0 | 8 |
| 副溜槽（上口）Secondary sluice (upper opening） | m | 0.8 | 0.8 | 0.608 |
| 副溜槽（下口）Secondary sluice（Lower opening） | m | 1.1 | 1.08 | 0.838 |
| 溜格数No. of sluice lattice | ||||
| 主溜格Primary sluice lattice | （个） | 8 | 9 | 8 |
| 副溜格（两边）Secondary sluice lattice（two edges） | （个） | 22 | 22 | 18 |
| 溜槽安装角度Sluice mounting angle | （°） | 10~12 | 10-12 | 11-12 |
| 塑料毛毡总长Overall length of plastic felt | m | 21 | 21 | 15 |
| 外形尺寸Outside dimension | m | 12.3×4×2.2 | 12.3×4×2.2 | 11×2.5×1.84 |
| 总质量Overall quality | t | 11 | 11 | 8 |
1、上料台：是承装矿砂料的部位，也是充分造浆的部位。
2、筛分装置：筛分装置由筛板和大小分流箱组成。
3、溜槽：溜槽分主溜槽、副溜槽。主溜槽在中间，副溜槽分置两侧。是采金选矿的主要部位。
CGLC 120A Combinational Placer Gold Separation Sluice is among a series of gold separating equipment manufactured by our Institute. After many years of production practice and with improvements and innovations having been made many times, the product has kept upgrading in terms of performance and quality and was well received by users at home and abroad.The product has obtained patent from China National Patent Bureau.
The product has the following features:
A. Large gold ore handling capacity with gold washing of 120m3/h.
B.Rational construction, high strength and convenient dismounting, easy for transport and transfer.
C. High recovery of gold mining up to 80-85, capable of recovering not only granular and platy gold but also fine grained gold.
D. Strong adaptability, applicable for ore separation at any condition.
| Mineral sand handling capacity | m3/h | 120 |
| Overall water consumption | m3/h | 882 |
| 12'' pump (major water spray ipe） | m3/h | 792 |
| 4'' pump | m3/h | 90 |
| Overall capacity of motor | kw | 37 |
| 12''pump motor power | kw | 22 |
| 4''pump motor power | kw | 7.5 |
| Primary sluice | m | 5.8 |
| Secondary sluice | m | 7.3 |
| Sluice width | ||
| Primary sluice | m | 1.0 |
| Secondary sluice (upper opening） | m | 0.8 |
| （Lower opening） | m | 1.1 |
| No. of sluice lattice | ||
| Primary sluice lattice | （Piece） | 8 |
| Secondary sluice lattice（two edges） | （Piece） | 22 |
| Sluice mounting angle | （°） | 10~12 |
| Overall length of plastic felt | m | 21 |
| Outside dimension | m | 12.3×4×2.2 |
| Overall quality | t | 11 |
A．Feeding platform:place where mineral sand material is carried and slurry is produced.
B．Screening apparatus: made up of screen plate and distribution boxes of various sizes.
C．Sluice:consisting of primary sluice and secondary sluice with the primary sluice located in the middle and the primary sluices at side; a major part.
