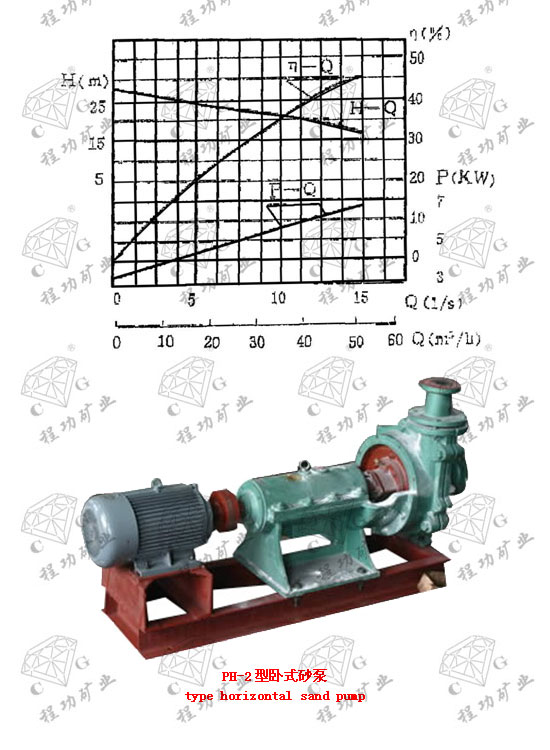

PH-2型卧式砂泵 type horizontal sand pump

SHARE TO:

Processing Materials Application Range Advantages Product Structure Technical Parameter

一、概述
I. Overview

PH—2型泵系单级单吸离心式衬胶泵，可输送各类不含有尖角的圆体颗粒的矿浆。输送矿浆****浓度不超过65%（重量计），温度不得超过60℃。专用于输送有腐蚀性矿浆。

Pump model PH-2, as a single stage single suction centrifugal rubber lined pump, can be used to convey various ore pulps with round particles without sharp angles, of which the concentration does not exceed 65% (in weight) and the temperature shall not exceed 60℃. This pump is particular ideal for conveyance of corrosive pulp.

根据用途不同，泵轴分别用优质碳素钢、镍铬钢制成，护套分别为耐磨橡胶、耐磨耐酸橡胶与钢板合制制而成，叶轮为铸钢制骨架，分别外衬耐磨橡胶、耐磨耐酸橡胶制成，泵的旋转方向，从传动方向看为逆时针旋转。

Depending on the purposes, pump spindle is made of quality carbon steel and nickel-chrome steel; the sheath is made of abrasive rubber, wear resistant and acid-resisting rubber and steel plate; impeller is provided with a steel frame externally lined with abrasive rubber and abrasion-proof and acid-resisting rubber. Viewed from the drive, the pump rotates counterclockwise.

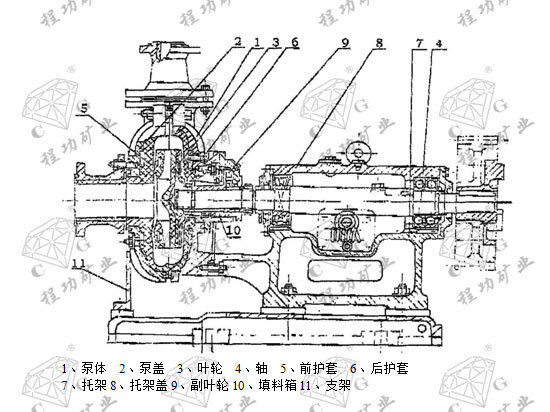

二、结构图
II. Structure Diagram

1、泵体 2、泵盖 3、叶轮 4、轴 5、前护套 6、后护套 7、托架8、托架盖9、副叶轮10、填料箱11、支架
1. pump body 2. pump cover 3. impeller 4. spindle 5. front sheath 6. rear sheath. 7. pedestal 8. pedestal cap 9. auxiliary impeller 10. gland box 11. support

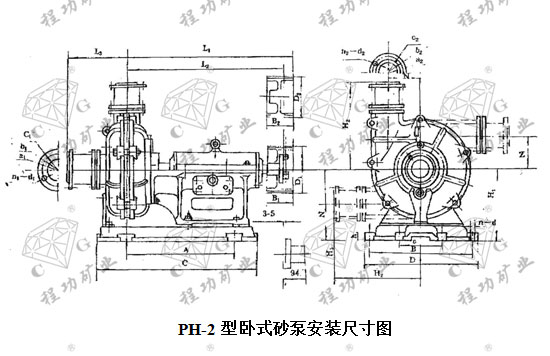

三、外形安装尺寸图
III. Overall Installation Dimension Diagram

PH-2型卧式砂泵安装尺寸图
Installation dimensions of horizontal sand pump model

四、外形安装尺寸表

砂泵型号 Sand Pump Model	电机功率 Motor Power	A	B	C	D	E	L1	L2	L3	H1	H2	H3	N	h	n-d	e
PH-2	11kw 18.5kw	600	550	919	610		890	860	260	400	443	243	157	40	4-Ф27	270

砂泵型号 Pump Model	三角皮带 V-belt		皮带轮 Pulley		进口法兰 Inlet flange				出口法兰 Outlet flange
砂泵型号 Pump Model	型号 model	根数Root number	D1×B1	D2×B2	a1	b1	c1	n1-d1	a2	b2	c2	n2-d2
PH-2	c	4	Ф267×112	Ф334×112	Ф100	Ф180	Ф215	4-Ф18	Ф50	Ф130	Ф160	4-Ф19
