产品特点：体积小、重量轻、熔炼速度快、操作简单、安装移动方便。连接电源，感应圈和进出水管路即可使用。耗电省，平均每熔 1kg黄金耗电小于0.3度，具有过流、过压、欠压、缺水、超温等保护功能，可用于黄金、白银粗炼、泼珠等用途。
Product Characteristics：Small in size, light in weight, speedy in smelting , simple in operation, easy in erection and movement; ready for operation when power supply, induction coil and inlet and outlet pipelines get connected; less power consumption with less than 0.3 kw/h for average per smelting of 1 kg gold; with over-current,over-voltage, under-voltage, water deficiency, over-temperature and other protection functions; applied for roughing of gold and smelting of white silver and other uses.

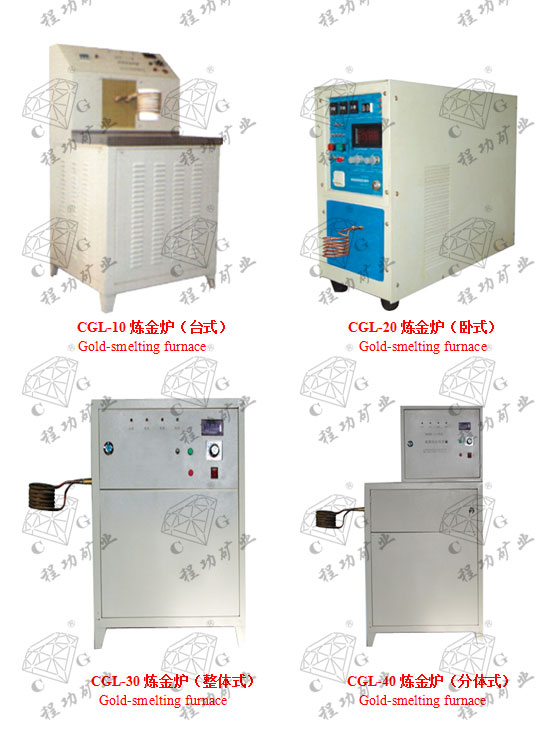

| 型号规格 Model | CGL-10 | CGL-20 | CGL-30 | CGL-40 | |
|---|---|---|---|---|---|
| 输入电压 Input voltage | V | 380 | 380 | 380 | 380 |
| 输入电流 Output voltage | A | 12-15 | 12-15 | 30-45 | 30-45 |
| 熔金重量 Gold smelting weight | kg | 0.5-4 | 0.01-5 | 4-12 | 4-15 |
| 输出功率 Output power | kw | 8-10 | 8-10 | 20-30 | 20-30 |
| 振荡频率 Vibrating frequency | khz | 50-90 | 50-90 | 35-50 | 35-50 |
| 冷却水压 Cooling water pressure | mpa | 0.1-0.3 | 0.1-0.3 | 0.1-0.3 | 0.1-0.3 |
| 溶炼时间 Smelting time | min | 2-6 | 2-6 | 3-10 | 3-10 |
| 输出振荡电流 Vibrating current for output | A | 180-600 | 180-600 | 300-1000 | 300-1000 |
| 外形尺寸 Outside dimension | mm | 610×650×1250 不包含感应圈及操作台 Not including induction coil and operation platform |
550×800×1050 不包含感应圈及操作台 Not including induction coil and operation platform |
||
注：配电箱客户自备 Note: Switch box to be provided by customer
