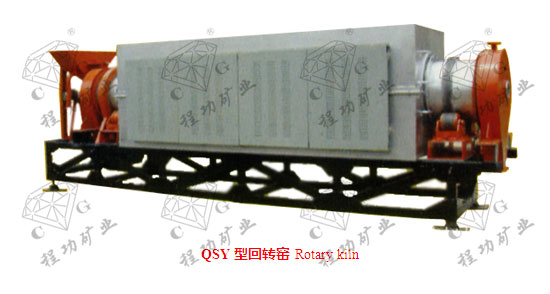

QSY型回转窑技术参数 Parameter of the Rotary kiln
该设备用于冶金、化工、环保及矿山生产用活性炭脱水后再生、原料的焙烧、挥发、离析、煅烧等。该设备具有恒温自动控 制、效率高及节能等特点。
This equipment features automatic constant temperature control, high efficiency and energy conservation etc. and is designed for metallurgy, chemical industry, environmental protection and re-generation of active carbon after dehydration for mine production and the calcination, volatilization, isolation and scorifying of raw material.
| 型号规格Model | 处理量Capacity | 物料含水 | 工作温度Operation temperature | 电热功率Power |
| kg/h | % | ℃ | kw | |
| QSY1100 | 250 | ＜40 | 650-750 | 156 |
| QSY800 | 100-120 | ＜40 | 600-700 | 120 |
| QSY650 | 50-60 | ＜40 | 600-700 | 108 |
| QSY475 | 30 | ＜40 | 600-700 | 81 |
| QSY252 | 16 | ＜40 | 600-810 | 36 |
| QSY139 | 5.5 | ＜40 | 600-810 | 18 |
