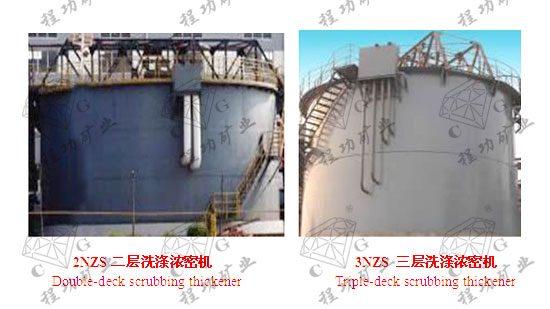

3NZS三层洗涤浓密机技术参数
Parameter of triple-deck scrubbing thickener
| 型号 Model | 直径 Dia | 中心池深 Central depth | 沉淀面积 Sedimental area | 耙架转速 Speed of rabble frame | 电动机型号 Motor model | 电机功率power | 处理能力 Capacity | 重量Weight | 备注 Remark |
| m | m | m2 | r.p.m | kw | t/d | kg | |||
| 3NZS6 | 6 | 7.44 | 84.80 | 0.25 | Y112M-6 | 2.2 | ≤50 | 15360 | 不带池重 Without tank |
| 3NZS7 | 7 | 7.51 | 115.5 | 0.25 | Y112M-6 | 2.2 | ≤56 | 16049 | |
| 3NZS8 | 8 | 8.58 | 151.0 | 0.28 | Y132M1-6 | 4 | ≤68 | 50449 | 带池重 With tank |
| 3NZS9 | 9 | 8.26 | 191.0 | 0.28 | Y132M1-6 | 4 | ≤88 | 54628 | |
| 3NZS12 | 12 | 9.17 | 339.0 | 0.20 | Y132M2-6 | 5.5 | ≤160 | 45400 | 不带池重 Without tank |
| 3NZS15 | 15 | 9.30 | 530.0 | 0.15 | Y132M2-6 | 5.5 | ≤250 | 56470 |
