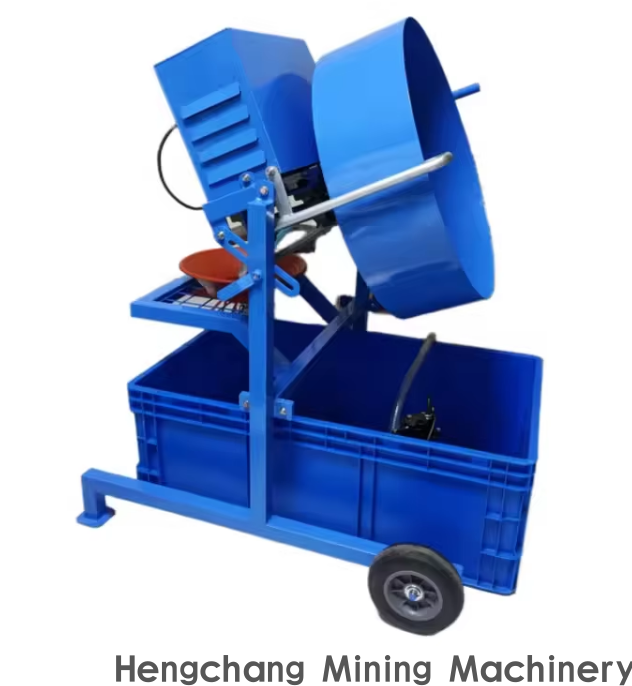

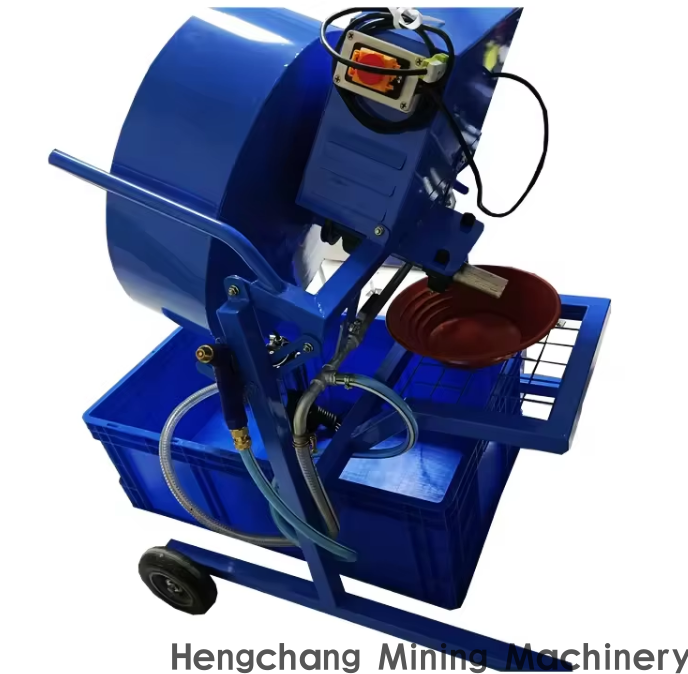

Small Scale Gold Mining Equipment Portable Gold Concentrator Turbo Type For Fine Gold Separating
Portable Turbo Gold Concentrator, also named turntable concentrator, spiral curved gold mining machine, is lightweight small gravity separation equipment for small‑scale gold mining. Equipped with sturdy folding rack, easy transport and fast installation. Capacity 100‑500kg per hour, achieves up to 99% gold recovery rate, excellent for recovering fine particle and powder gold, greatly improve gold output for placer and alluvial gold ore.
The newly introduced spiral gold washing machine is mainly used for the selection and separation of placer gold, which can completely replace manual gold shaking. The equipment is small in size and weight, fast in heavy sand processing, very time-saving and labor-saving, and has a strong ability to separate fine-grained gold.
The whole equipment is made of steel welding, which is durable and wear-resistant, without frequent replacement of accessories.The angle of the helical disc can be finely adjusted during work to achieve the best recycling effect, and the tires are configured for easy movement.

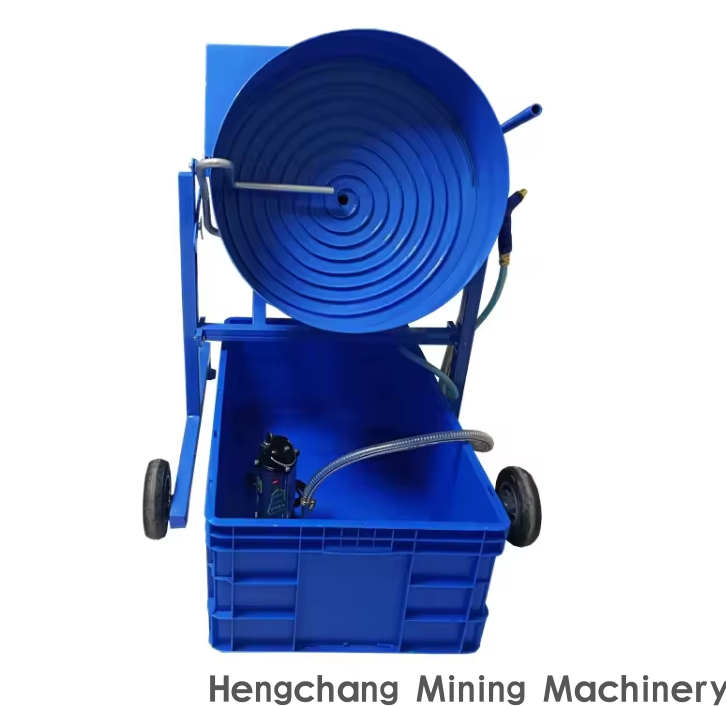

When working, pour a small amount of material into the spiral disc. With the rotation of the spiral disc and the flushing of the water flow, the materials such as black sand with light specific gravity will be washed out, and finally only the gold with large specific gravity will be enriched in the middle enrichment hole. It is then discharged into the container for storing gold through the enrichment hole.
Gold concentrator, also known as turbo gold mining machine, turntable concentrator, spiral curved gold mining machine, portable gold mining machine, etc., is a small and light mineral processing machine, light and flexible, easy to carry anywhere. A sturdy folding rack is used that folds up and stores neatly in the trunk of the car. It can be installed quickly and easily, and can handle 100-500kg of material within an hour. It is both an independent separator of the panning machine and a gravity separator.
After numerous experiments, design and precise calculation of the data, the recovery of particles and powder gold, no loss of the smallest gold particles, it will increase the gold recovery rate by at least 30%, the final recovery rate can reach 99%. Turbines can concentrate more quickly. It not only improves the working speed, but also increases the gold recovery rate. More gold, less time, less work!
