Mobile Crushing Plant
Mobile crushing plant also named portable crusher station is a complete mobile crushing and screening plant.
Processing Materials
Pebble, rock (the limestone, granite, basalt, aluminum, andesite, etc.), ore tailings, and slags. It can be used in building aggregate, highway, asphalt concrete and cement aggregate, and some other materials.
Application Range
Mobile crushing plant can be used in stone processing line. As well as stone reshaping production in water conservancy and hydropower engineering field, highway, railway, bridge, passenger line, airport runway, municipal engineering and high-rise buildings finely process of mining areas.
Advantages and Characteristics
1. Optimized steel frame structure design, compact and reasonable structure, modular assembly structure, small turning radius, convenient transportation
2. Folding feed bin, hydraulic support guard plate, simple and reliable operation
3. Control cabinet can be equipped with LCD touch control screen, PLC control system
4. Conveyor angle can be adjusted, can be flipped and folded
5. Outrigger can be hydraulically lifted, flexible and convenient operation

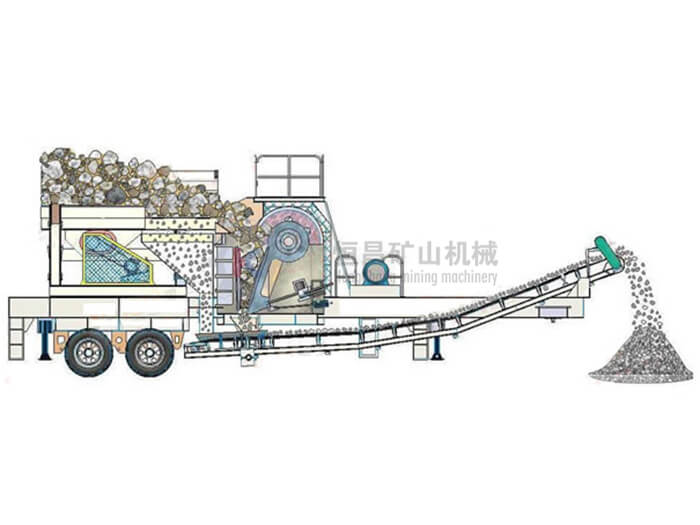

Product Structure
This mobile crusher plant incorporates all the equipment together on one truck, which has high chassis, narrower body compared with other trucks, this ensure the crushing plant be easily transported on highways and moved to crushing sites, so it is able to achieve on-site crushing without material transporting from one place to another place. In addition, the lengthened plant is able to transport the final products to the motor-lorry directly. it can start to work soon even in the bumpy ground without reinstallation, so it saves more time and money than fixed crushing plant which needs to install individual equipment one by one.
Technical Parameter

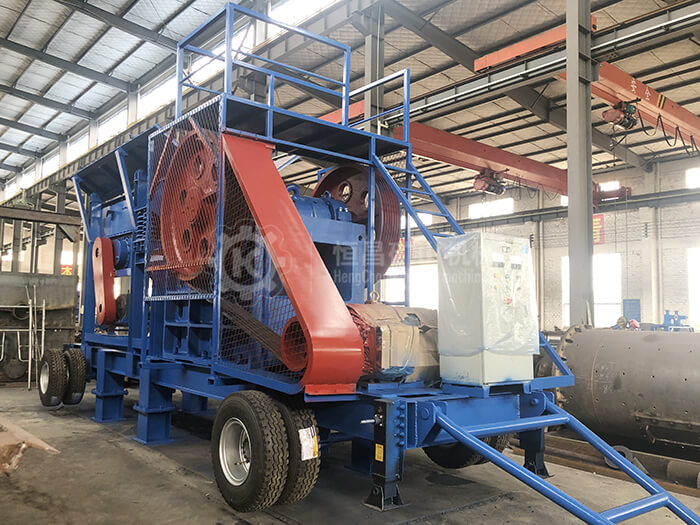

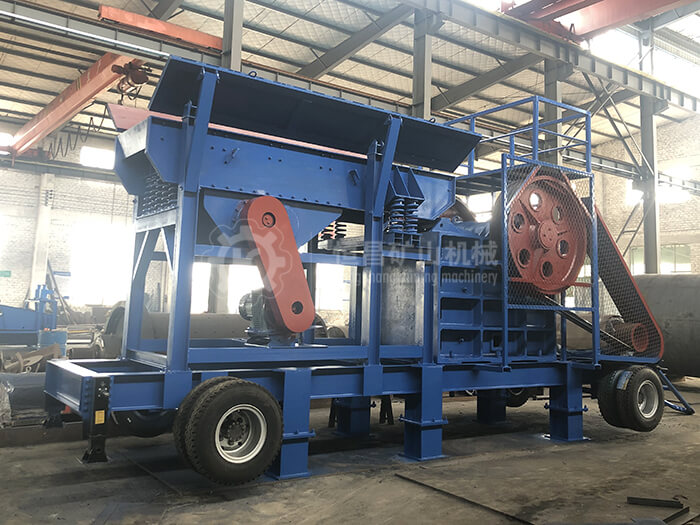

Mobile Jaw Crusher Station | ||||||
Model | Vibrating grizzly feeder | Jaw crusher | Belt machine specification | Capacity(t/h) | Power(kw) | Dimensions(mm) (L*W*H) |
GZD938P69 | GZD380×95 | PE600×900 | B800×8M | 70-150 | 91.5 | 13200×2900×4700 |
GZD1142P710 | GZD420×110 | PE750×1060 | B1000×11M | 90-200 | 134 | 15000×3100×5100 |
GZD1349P129 | GZD490×130 | PE900×1200 | B1200×13M | 150-300 | 146 | 17000×3300×5600 |

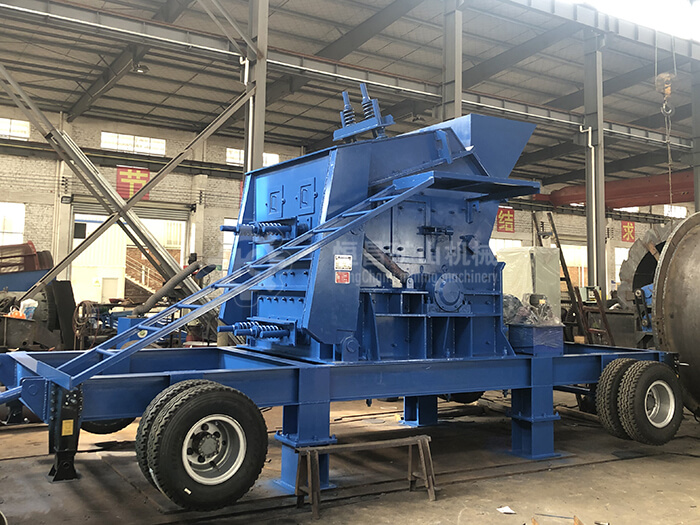

Mobile Impact Crusher Station | ||||||
Model | Circle vibrating screen | Impact crusher | Belt machine specification | Capacity(t/h) | Power(kw) | Dimensions(mm) (L*W*H) |
3YK1848F1210 | 3YK1848 | PF-1210 | B650×7M | 70-300 | 128.5-150.5 | 12500×3000×6500 |
3YK1860F1214 | 3YK1860 | PF-1214 | B650×8M | 90-400 | 154-190 | 13500×3000×6500 |
3YK2160F1315 | 3YK2160 | PF-1315 | B800×8M | 120-450 | 210-297 | 14000×3200×6800 |
