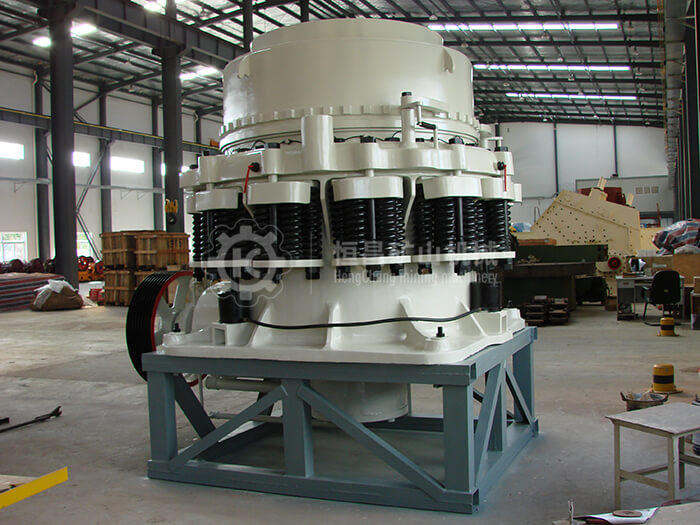

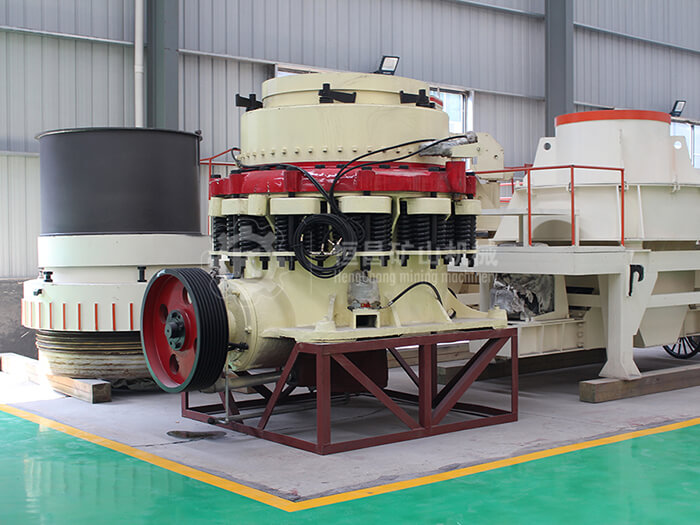

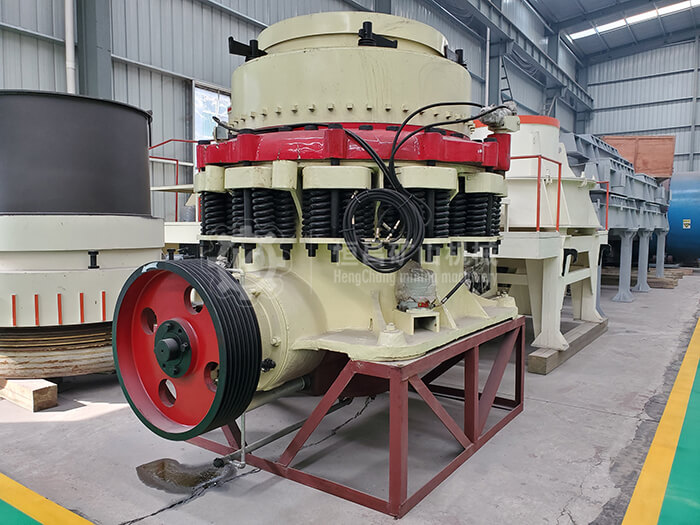

Cone Crusher

Symons cone crusher is a modern high performance crusher integrating high swing frequency, optimized cavity type and reasonable stroke on the basis of introducing and absorbing foreign technology and according to customer demand.

SHARE TO:

Processing Materials Application Range Advantages Product Structure Technical Parameter

Processing Materials

Metallic and non-metallic ores (gold, silver, copper, tantalum, barite, tungsten, quartz, coal, limestone etc.), aggregate (limestone, rocks, river stone, blast rock, lava rock), and some other materials.

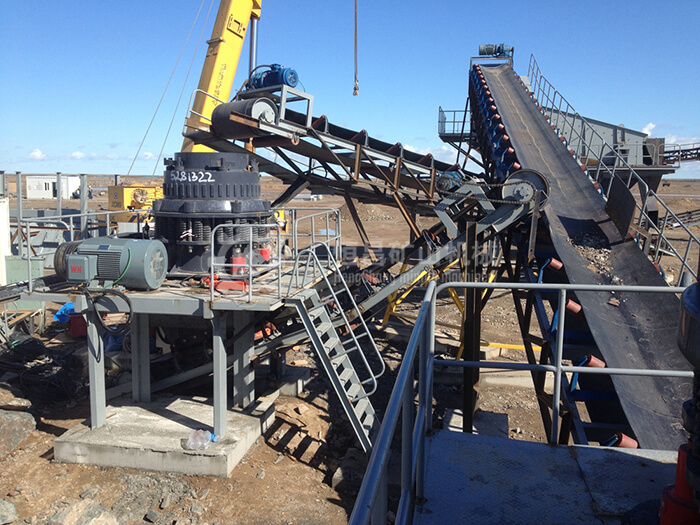

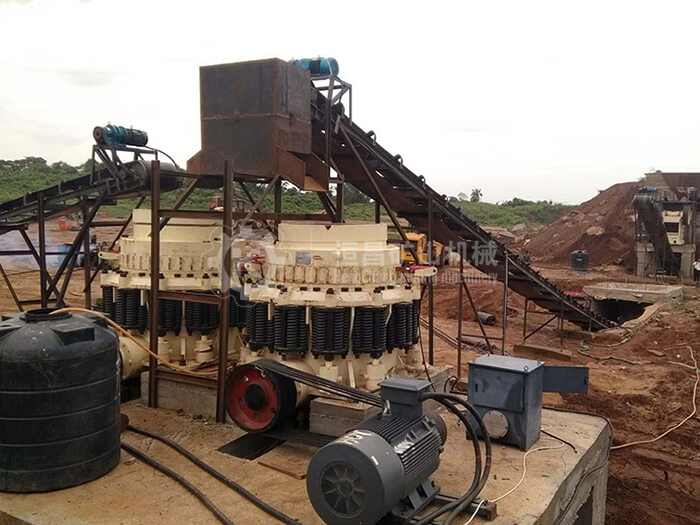

Application Range

Cone crusher can be widely used in metal and non-metal mining, cement plant, construction, sand and stone metallurgy and other industries, non-ferrous ores, granite, limestone, quartzite, sandstone, pebbles and so on.

Advantages and Characteristics

Good product grain shape, strong production capacity

Good reliability and high stability

Easy maintenance, and easy to operate

Low operating costs, a wide range of applications

Laminated crushing, the material is good grain shape

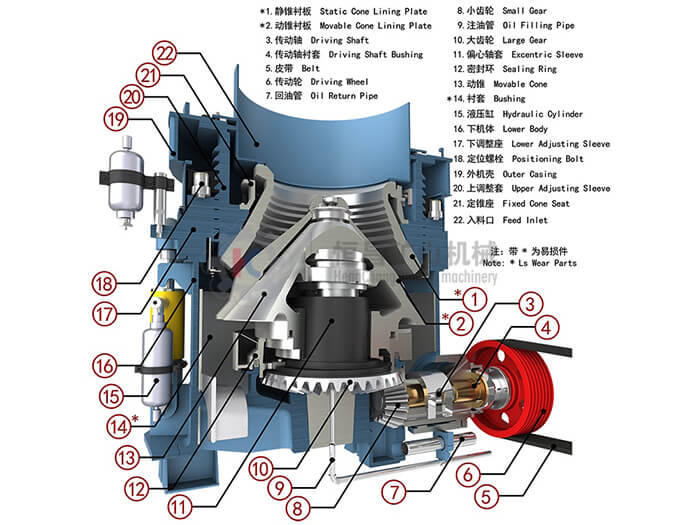

Product Structure

The motor drives the eccentric sleeve to rotate through the drive and the moving cone is rotating and swinging under the forced motion of the eccentric shaft. The moving cone is close to the section of the static cone and becomes the crushing chamber. The material is broken by the multiple extrusion and impact of the moving cone and the static cone. When the moving cone is away from the section, it has been crushed to the required size, and the material is falling under its own gravity and discharged from the cone bottom.

Technical Parameter

Model	Cone diameter (mm)	Max feeding size (mm)	Discharging hole size (mm)	Capacity (t/h)	Motor power (kw)	Dimension (LxWxH) (mm)	Weight (t)
PYB-600	600	65	12-25	20-40	30	2234x1370x1675	5.5
PYD-600	600	35	3-13	12-23	30	2234x1370x1675	5.8
PYB-900	900	115	15-50	50-90	55	2692x1640x2350	11.2
PYZ-900	900	60	5-20	20-65	55	2692x1640x2350	11.2
PYD-900	900	40	3-13	15-50	55	2692x1640x2350	11.3
PYB-1200	1200	145	20-50	110-168	110	2790x1878x2844	24.7
PYZ-1200	1200	100	8-25	42-135	110	2790x1878x2844	25.2
PYD-1200	1200	50	3-18	18-105	110	2790x1878x2844	25.3
PYB-1750	1750	215	25-60	280-480	155	3910x2894x3809	50.3
PYZ-1750	1750	185	10-30	115-320	155	3910x2894x3809	50.3
PYD-1750	1750	85	5-15	75-230	155	3910x2894x3809	50.2
PYB-2200	2200	300	30-60	590-1100	260-280	4622x3302x4470	80.5
PYZ-2200	2200	230	10-30	200-580	260-280	4622x3302x4470	80.5
PYD-2200	2200	100	5-10	260-280	260-280	4622x3302x4470	81.4
