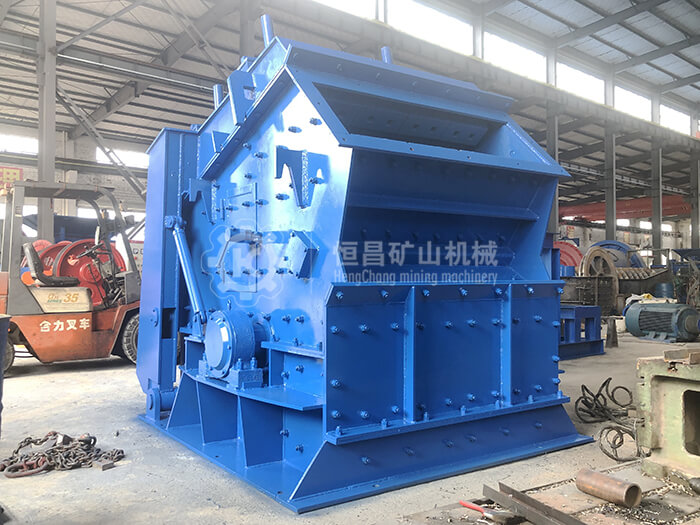

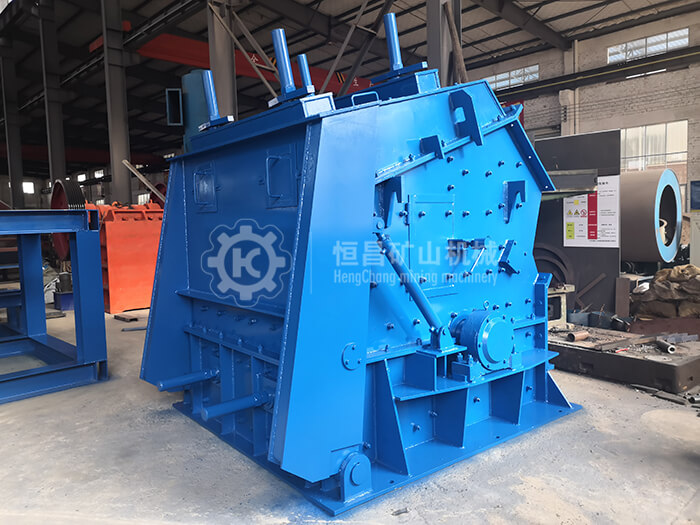

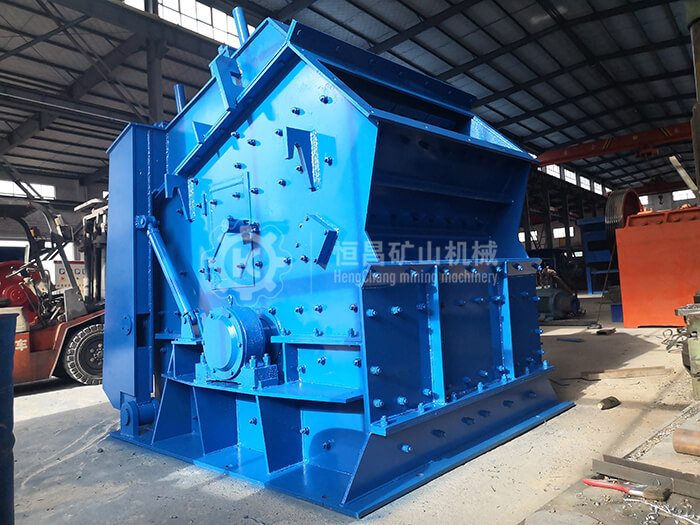

Impact Crusher
Impact crusher is the machine which breaks materials using the impact energy.
Processing Materials
Metallic and non-metallic ores (gold, silver, copper, tantalum, barite, tungsten, quartz, coal, limestone etc.), aggregate (rocks, river stone, blast rock, lava rock), construction waste (asphalt, concrete, bricks, pavers, etc.), and some other materials.
Application Range
Impact crusher can handle materials with a side length of 100-500 mm or less, with a pressure resistance of up to 350 MPa, and has the advantages of a large crushing ratio, and the crushed materials are cubic particles. It is widely used in construction materials, ore crushing, railway, highway, energy, transportation, energy, cement, mining, chemical industry and other industries for medium and fine crushed materials. The discharge particle size can be adjusted, and the crushing specifications are diverse.
Advantages and Characteristics
1. Multiple chamber can make it evenly and suitable for crushing hard rock
2. Large low feed port makes it easy to layout production line and increase the feed size

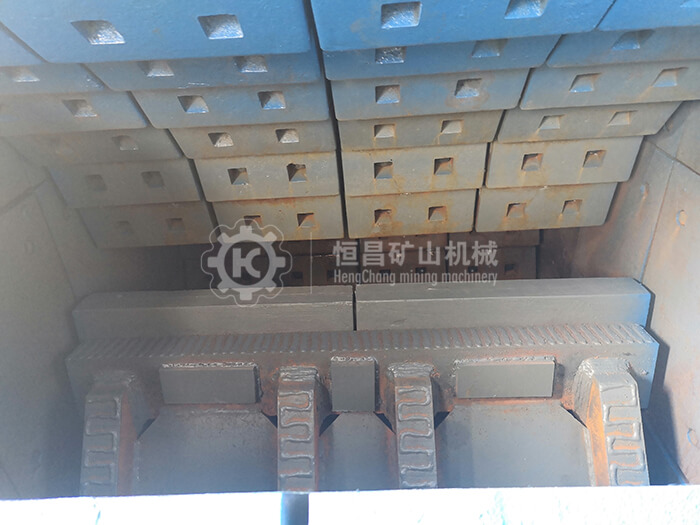

3. New wear-resistant material of the plate hammer, impact plate and liner can last longer life
4. High chrome hammer and unique counterattack lining board are particularly suitable for crushing hard rock and energy efficient
5. The entire plate hammer structure makes the materials particle size more smaller and cube-shaped
6. It uses fully hydraulic system, so it is easy and more convenient for maintenance and replacement of worn parts

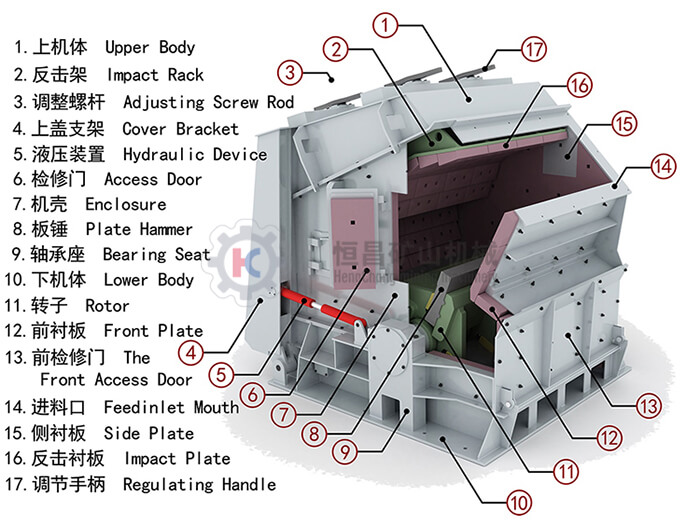

Product Structure
The rotor rotates of our impact crusher with a high speed driven by power motor when the machine is working. When the materials get into hammer effect area, they are impacting to break with the hammer on the rotor and then threw to the impacting position to take another crushing. After that they spring back to hammer impacting area from impact wrist plate to take crushing again. This procedure repeats itself. The materials get into 1, 2, 3 impact cavity from big to small to take repeated crushing. When the material is crushed to the required size, it’s discharged from the outlet. The material’s discharging size and shape can be changed through adjusting the gap between impact frame and rotator.
Technical Parameter
Model | Specification | Max Feed Size | Capacity | Power | Dimension | Weight |
PF-1007 | Φ1000×700 | 250 | 15-30 | 37 | 2330×1660×2300 | 6.5 |
PF-1010 | Φ1000×1050 | 250 | 30-80 | 75 | 2370×1700×2390 | 13 |
PF-1210 | Φ1250×1050 | 300 | 60-120 | 110 | 2680×2160×2800 | 15 |
PF-1214 | Φ1250×1400 | 300 | 100-160 | 132 | 2650×2460×2800 | 20 |
PF-1315 | Φ1320×1500 | 300 | 100-180 | 180 | 3180×2720×3120 | 22 |
PF-1320 | Φ1300×2000 | 300 | 150-250 | 200 | 3220×3100×3120 | 28 |
PF-1520 | Φ1500×2000 | 300 | 180-320 | 220 | 3959×3564×3330 | 40 |
PF-1622 | Φ1600×2200 | 350 | 400-600 | 250 | 4249×3664×3530 | 65 |
PF-1820 | Φ1800×2000 | 400 | 500-800 | 280 | 4400×3866×4009 | 83 |
