Hammer Crusher

Hammer crusher is used as fine crusher for mining, metallurgy, construction and some other industries.

SHARE TO:

Processing Materials Application Range Advantages Product Structure Technical Parameter

Processing Materials

Rock gold ore, rock coltan ore, rock tin ore, rock tungsten ore, rock iron ore, rock manganese ore, rock chrome ore, stones, gravel, coal, granite, marble, limestone, glass and some other materials.

Application Range

Hammer crusher is widely used for crushing various materials like stone, rock gold, rock coltan, rock tin ore, granite, trap rock, coke, coal, manganese ore, iron ore, emery, fused aluminum, oxide, fused calcium carbide, lime stone, quartz, alloys, glass, etc.

Advantages and Characteristics

Advantages and Characteristics:

1.Easy installation and maintenance.

2.Developed structure and long service life.

3.Difficult deformation with high strength.

4.Unblocked material flow and large production capacity.

5.Smooth and reliable performance.

6.Low consumption of spare parts and low maintenance costs.

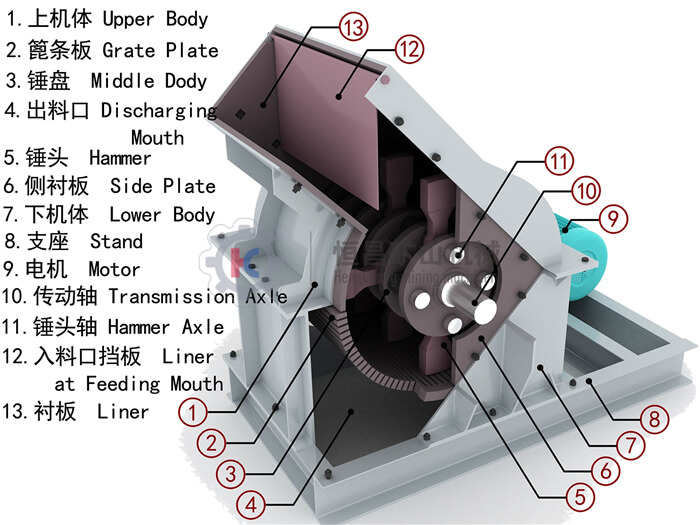

Product Structure

The motor drives the rotor to rotate at a high speed through the belt, and on the rotor there are series of hammers. When the material get into the working area of hammers, the rotating hammers with high rotation speed are crushing the material, the crushed product meeting the required size can be discharged by the outlet and become the final products, the large size product are brought back to the crushing area by the hammers for being re-crushed until they reached the required size.

Technical Parameter

Model	Feeding Size (mm)	Discharging Size (mm)	Capacity (t/h)	Power (kw)	Weight (kg)	Dimensions (mm)
PC400×300	≤200	≤25	5-10	5.5	800	900×670×860
PC500×350	≤200	≤25	8-15	11	1200	1000x770x900
PC600×400	≤210	≤30	10-22	18.5	2200	1200×1050×1200
PC600×600	≤250	≤30	15-30	45	2140	1300X1000X1250
PC800×600	≤250	≤35	18-40	55	2450	1310×1180×1310
PC800×800	≤250	≤35	25-45	55	3050	1440×1740×1410
PC1000×800	≤300	≤40	25-50	75	5900	1600×1390×1575
PC1000×1000	≤300	≤40	30-55	132	8000	1800×1590×1775
PC1200×1200	≤350	≤40	35-65	180	14000	2060×1600×1890
PC1400×1400	≤350	≤40	50-100	280	32000	2365×1870×2220
PC1600×1600	≤350	≤40	100-150	480	37500	3050×2850×2800
