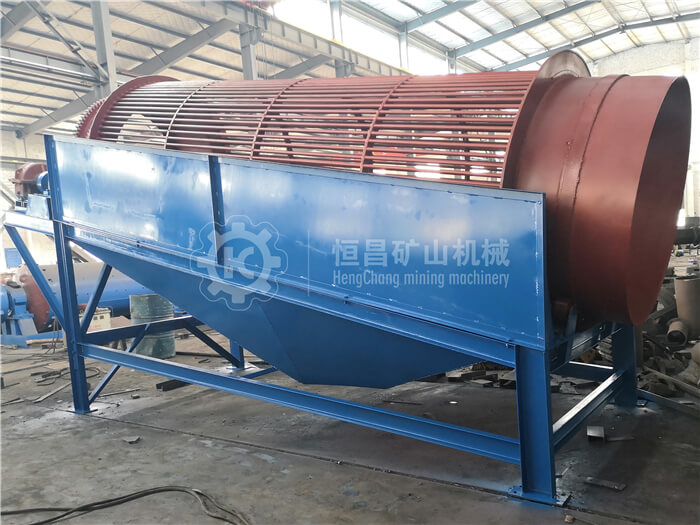

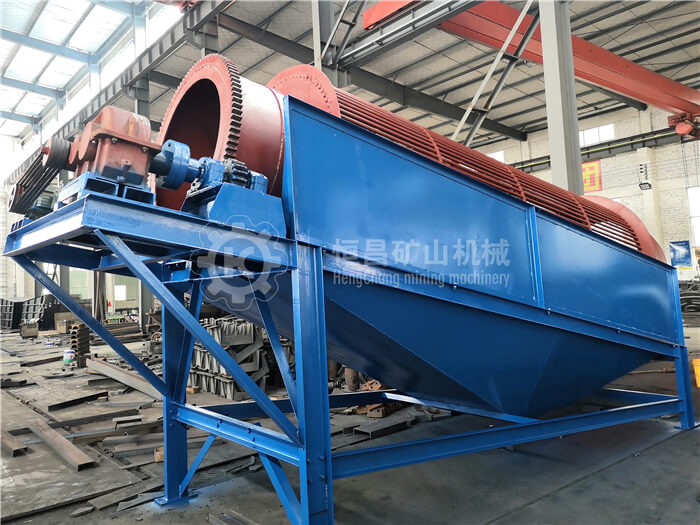

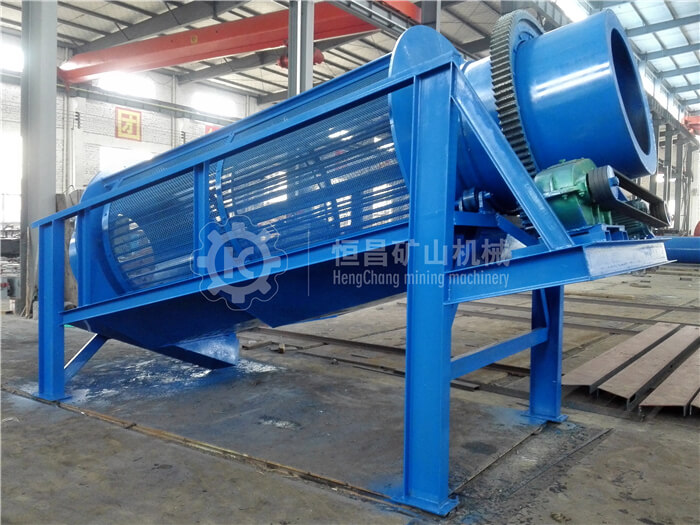

Trommel Screen
Gold trommel screen is a mechanical screening machine used to separate materials in the mineral and solid-waste processing industries.
Processing Materials
Metallic and non-metallic ores (gold, silver, copper, tantalum, barite, tungsten, quartz, coal, limestone etc.), aggregate (rocks, river stone, blast rock, lava rock), construction waste (asphalt, concrete, bricks, pavers, etc.), and some other materials.
Application Range
Trommel screen is mainly used in gold processing, metallurgy, mine, coal, power station, water conservancy project, building industry, light industry, and chemical industry. It is efficient screening machine for the classification of bulk material such as coal, minerals, coke etc.
Advantages and Characteristics
Advantages and Characteristics:
1.The angle of inclination of installation is small and the machine is not very easy to be blocked.
2.Multiple screen sizeand easily changed screen plates.
3.Low noise and little powder dust pollution
4.Convenient installationand stable operation
5.High screening efficiencyand large processing capacity

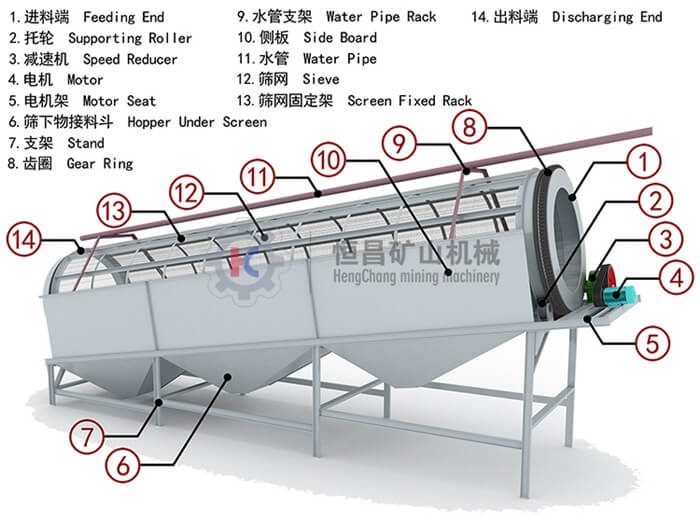

Product Structure

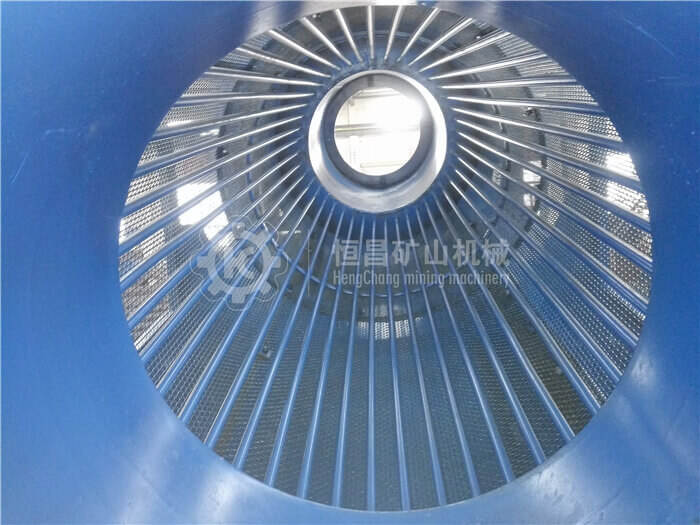

Materials fed into the trommel screen, is lifted up by the rotation and aerated as it falls back down. This action is repeated with each revolution along the length of the drum. The three coupling shafts are designed higher than the screening surface, which enables the larger particles being stirred up and thus increases the screening efficiency. The particles larger than screen mesh size are discharged as the upper size materials which could be delivered away by belt conveyor, while the particles smaller than screen mesh are discharged as undersize materials.
Technical Parameter
Model | Capacity | Power | Screen diameter | Screen length | Discharge size | Dimension (LxWxH) | Weight |
GT1015 | 50 | 4 | 1000 | 1500 | 3-10 | 3000x1400x2145 | 2200 |
GT1020 | 100 | 5.5 | 1000 | 2000 | 3-10 | 3460x1400x2145 | 2800 |
GT1225 | 160 | 7.5 | 1200 | 2500 | 3-10 | 4146x1600x2680 | 4200 |
GT1530 | 250 | 11 | 1500 | 3000 | 3-10 | 4460x1900x2820 | 5100 |
GT1545 | 350 | 15 | 1500 | 4500 | 3-10 | 5960x1900x3080 | 6000 |
GT1848 | 450 | 22 | 1800 | 4800 | 3-10 | 6500x2300x4000 | 7500 |
GT2055 | 600 | 30 | 2000 | 5500 | 3-10 | 7500x2500x4000 | 8600 |
