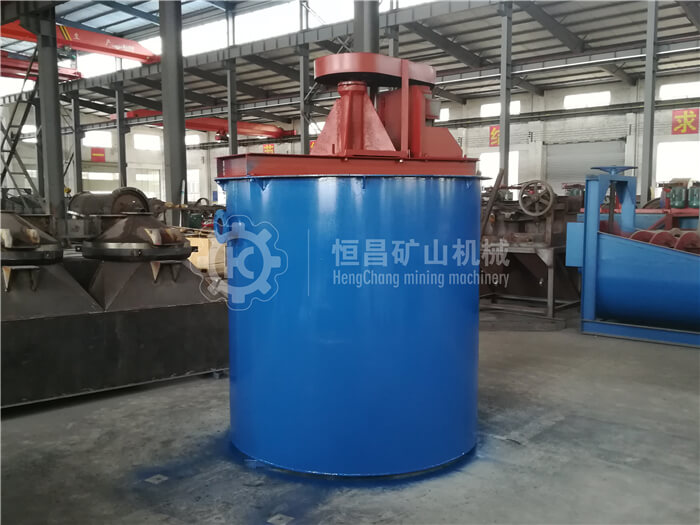

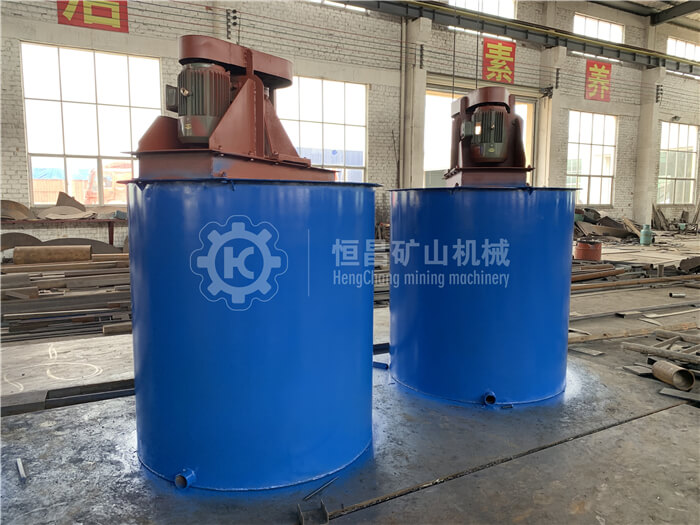

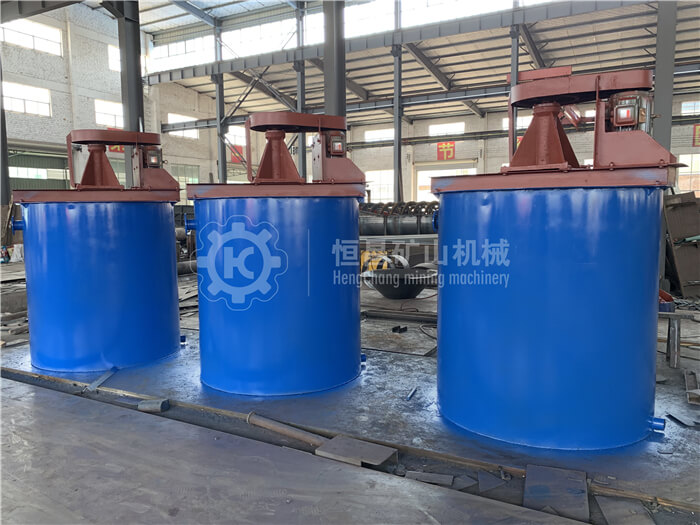

Agitation Tank

Agitation tank is the necessary equipment to extend the medicament reaction time and strengthen the drug reaction quality.

SHARE TO:

Processing Materials Application Range Advantages Product Structure Technical Parameter

Processing Materials

Copper, zinc, lead, nickel, gold, manganese, silver, iron, graphite, sulfur, diamond, quartz, mica, feldspar, fluorite, apatite, barite and other ore pulps.

Application Range

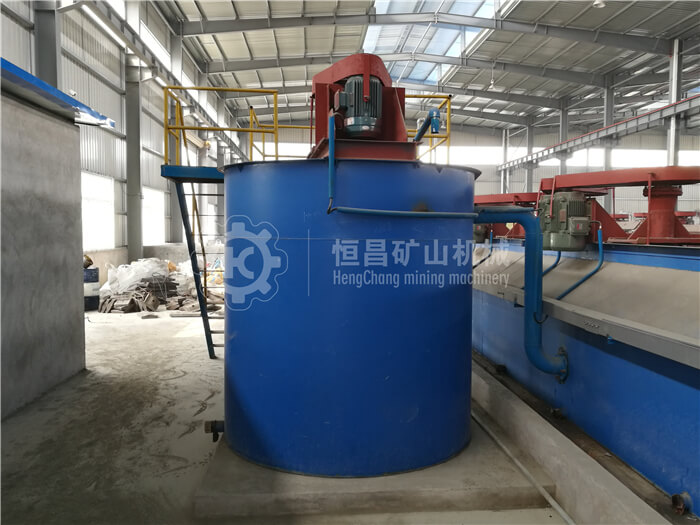

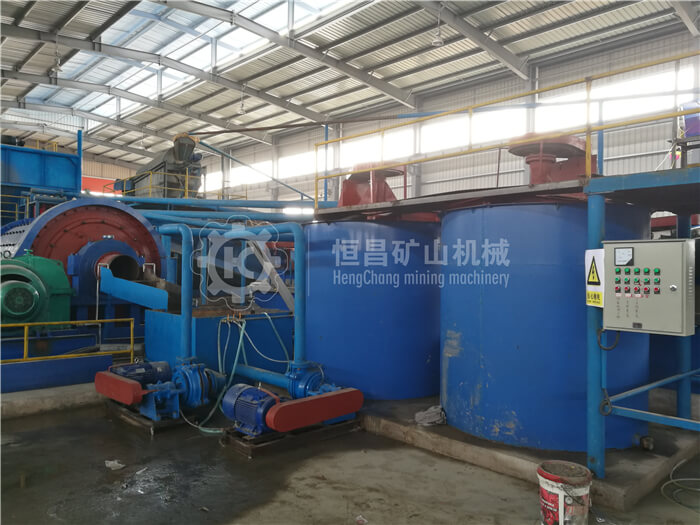

Agitation tank is mainly applied in slurry stirring before floatation, chemical and construction industry, cyanide chemical plant, sewage treatment plant, and coal plant etc.

Advantages and Characteristics

Advantages and Characteristics:

1.The cylinder is lined with wear-resistant rubber with strong resistance to wear and corrosion strong agitation capability stable operation, convenient maintenance energy saving.

2.The utility model has the advantages of compact structure, good sealing performance, and a baffle plate is arranged at the feed inlet to prevent the water mist from reversing the string.

3.Mixing uniform, mixing blade fan-shaped, mixing with the medium contact area.

4.Multi-row nozzle, even and adjustable water quantity.

5.Low residual ash rate, the bottom of the watershed box to ensure that the setting of equipment without the dead angle.

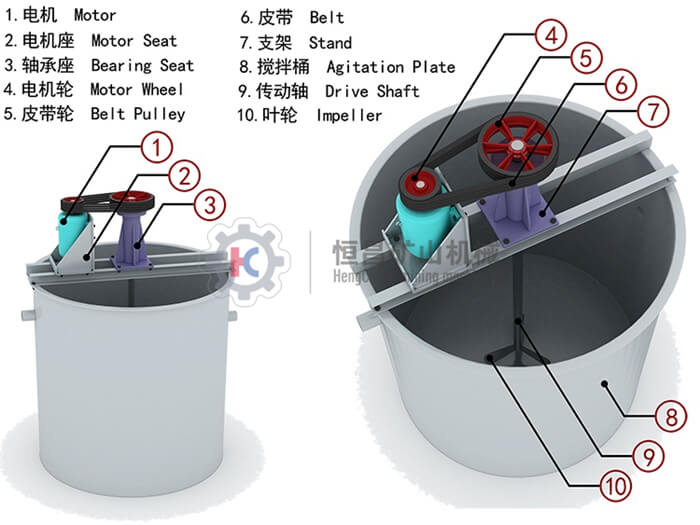

Product Structure

Agitation tank for chemical reagent for chemical reagent adopts barrel shaped radiation circular spiral impeller for mixing operation by mechanical stirring method. The motor drives V- belt transmission device which drives the impeller. Reagents mix evenly under the rotation of impeller preparing for next step that mix the ore slurry and reagents. Agitation tank for chemical reagent is used for reagents preparation before floatation..

Technical Parameter

Model	Tank diameter (mm)	Tank height (mm)	Effective volume (m3)	Impeller diameter (mm)	Impeller speed (r.p.m)	Power (kw)	Weight (kg)
XB05	500	500	0.078	150	690	0.75	110
XB07	750	750	0.26	240	530	1.5	228
XB10	1000	1000	0.58	240	530	1.5	350
XB12	1200	1200	1.14	400	320	3	765
XB15	1500	1500	2.2	400	320	3	1360
XB20	2000	2000	5.5	550	230	5.5	1655
XB25	2500	2500	11	625	230	7.5	2766
XB30	3000	3000	19.1	900	210	18.5	4296
GBJ-1000×1000	1000	1000	0.58	240	530	2.2	548
GBJ-1250×1250	1250	1250	1.15	240	350	3	1108
GBJ-1500×1500	1500	1500	2.2	420	320	5.5	2207
GBJ-2000×2000	2000	2000	4.4	560	240	7.5	3110
GBJ-2500×2500	2500	2500	9.2	560	272	15	3939
GBJ-3000×3000	3000	3000	19.1	700	211	18.5	4613
GBJ-4000×4000	4000	4000	45	1000	153	30	9560
