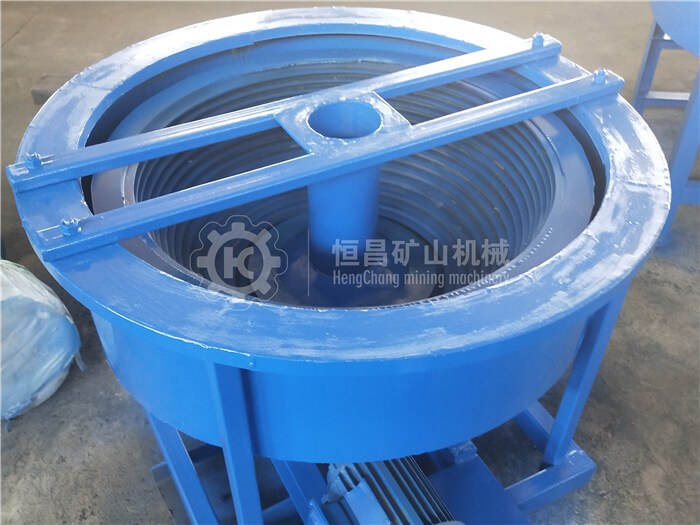

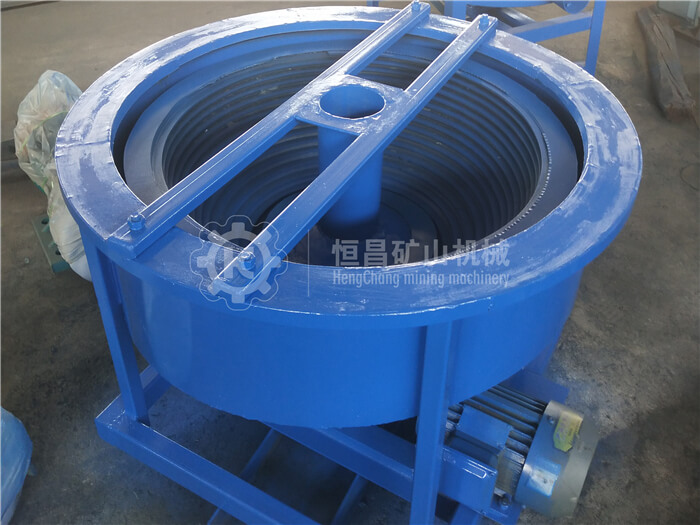

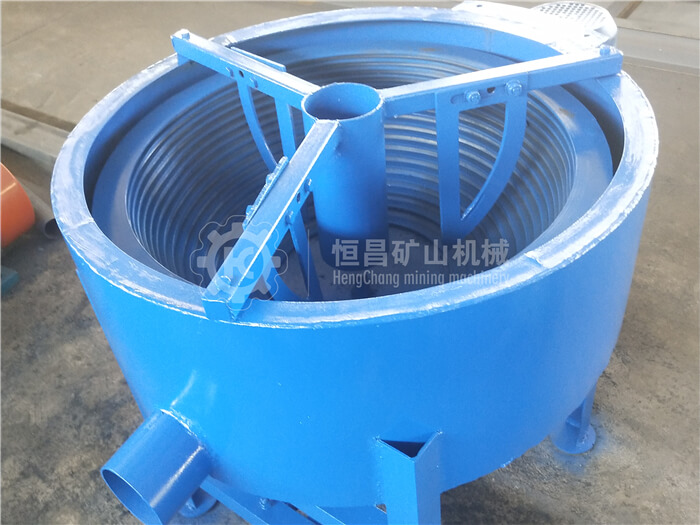

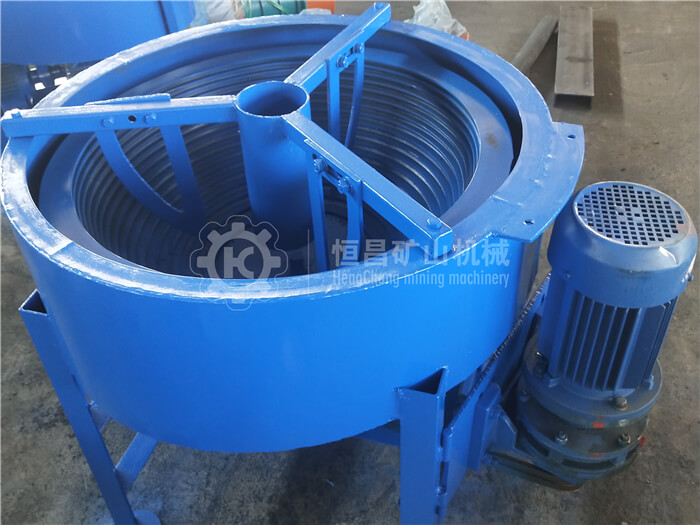

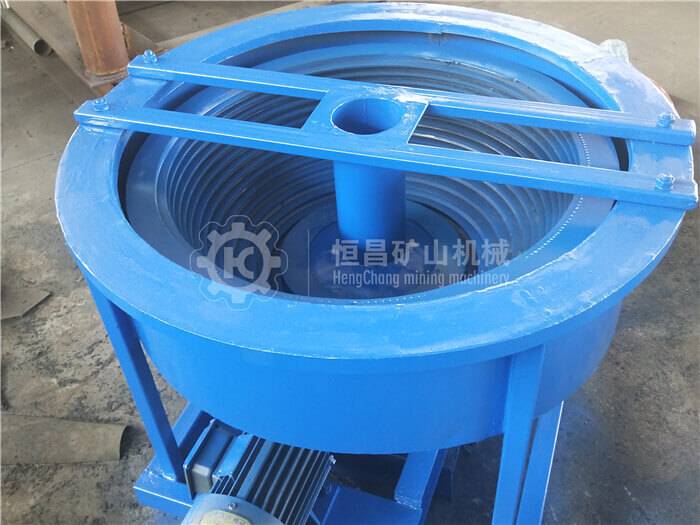

Blue bowl gold concentrator is one continuous winding rubber riffle type of gravity concentration equipment, used in the gold mining industry for the recovery of fine gold.
Gold, copper, platinum, tin, tungsten, lead, antimony, chrome, titanium.
It can be used not only for placer gold mining, but also for hard rock mining to recover the natural gold, replacing amalgamation. It is also used to recover gold from the old tailings.
1.High concentrating ratio and recovery for fine gold.
2.Removal of both nonmagnetic and magnetic sands without fine gold loses.
3.Continuous centrifuge bowl with self-cleaning riffles.
4.Environmentally friendly (requires no chemical additives or reagents).
5.Low water and electricity requirements.
6.Low production costs, durable wear parts, minimal maintenance requirements.
7.Compact design requiring less space, easy merged into the existing mining processing.

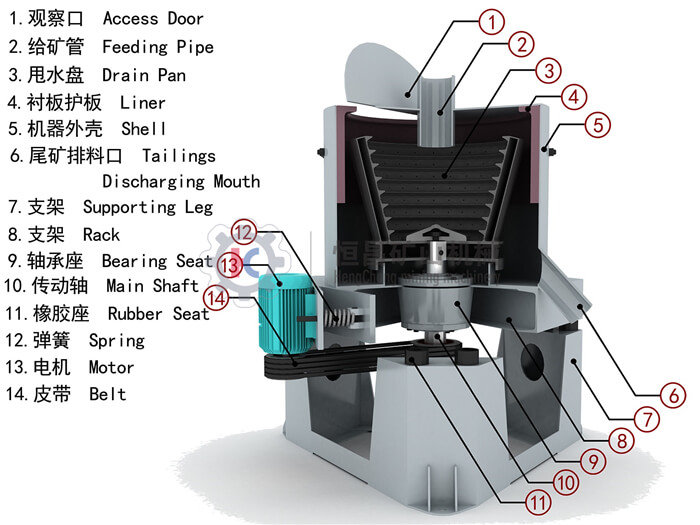

The hollow shaft of centrifugal bowl concentrator can be driven by electrical motor transmission part through belt driving, making the rotation inner sleeve rotate in a high speed to produce centrifugal force. The centrifugal force pushes the gold not only outward but also upward such that even when gold enters the riffles it is not securely trapped. In fact it will continue to migrate up the bowl’s wall over riffle after riffle until it is lost. Spiral riffles eliminate this loss by forming a gold trap undercut along the bottom of all the riffles.
Model | Capacity (t/h) | Feeding size (mm) | Feeding density (%) | Water rate (t/h) | Motor power (kw) | Dimension (mm) | Weight (kg) |
CB-80 | 2-5 | 0-3 | 10% | 1.5-2 | 1.1 | 960x850x750 | 140 |
KCB-80 | 1-3 | 0-3 | 10% | 1.5-2 | 1.1 | 1050x800x920 | 150 |
