SPQJ型切片机技术参数 Technical Parameter of

切片机适用于地质、冶金、建材、煤炭、石油等工业实验室切取矿样及其他材料如玻璃、陶瓷、玉石、石英、金属试样切片。本产品由原地矿部唯一指定企业生产行业标准。

It serves to slice mineral sample in industrial laboratory of geology, metallurgy, building materials, coal and petroleum and so on. It also serves to slice other materials, such as glass, ceramics, jade, quartz and metal

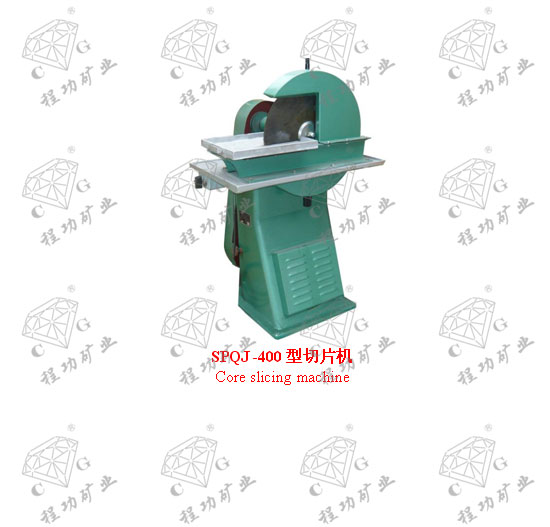

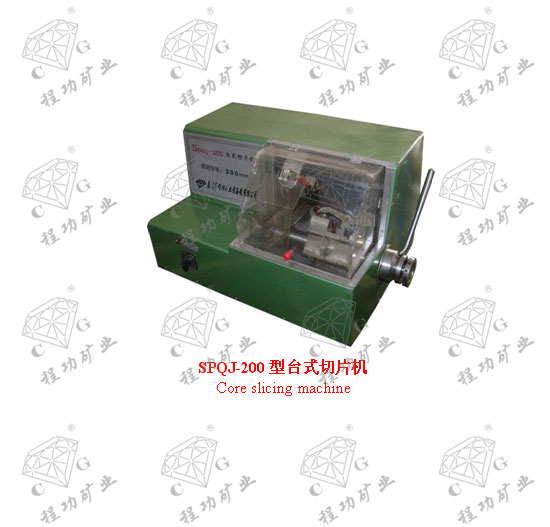

切片机技术参数  Core slicing machine

型号规格Model	单位Uite	SPQJ-200台式	SPQJ-300	SPQJ - 400
金刚石刀片尺寸 Diamond blade sinze	mm	Φ200	Φ300	Φ400
刀片线速度 Blade linear speed	m/s	29	20-40	20
切割尺寸 Slicing dimension	mm	Φ15-Φ45 35×40	****60×70	100×100
功率 Power	kw/V	0.55/380	（0.8/1.1）/380	1.1/380
外形尺寸 Overall dimensions	mm	720×515×415	825×800×1105	865×560×1010
质量 Weight	kg	95	190	110
