磨片机、抛光机技术参数<br> Technical Paramete

磨片机、抛光机适用于科研院校、厂矿试验室试样切割后研磨抛光、试样光谱分析前准备工作。结构有自动除尘、自动回收研磨砂等特点。

They serve polishing after sample cutting and preparing before sample spectroscopic analysis in the laboratory of institutes, factories and mines. They can automatically remove dust and recover grinding sand and so on.

磨片机、抛光机技术参数  Lapping machine and polishing machine

型号规格Model	磨盘直径 grinding disc diameter	转速 Rotational speed	功率 Power	外形尺寸 Overall dimension	质量 Weight
	mm	r/min	kw/v	mm	kg

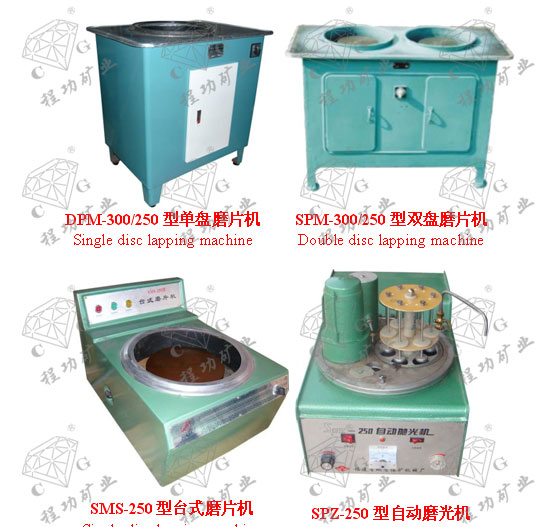

SMS-250台式磨片机 Table lapping machine	Φ250	500-1000	0.6/380	446×635×407	64
DPM-250单盘磨片机 Single disc lapping machine	Φ250	800-1200	1.1/380	820×610×980	160
DPM-300单盘磨片机 Single disc lapping machine	Φ300	800-1200	1.1/380	820×610×980	164

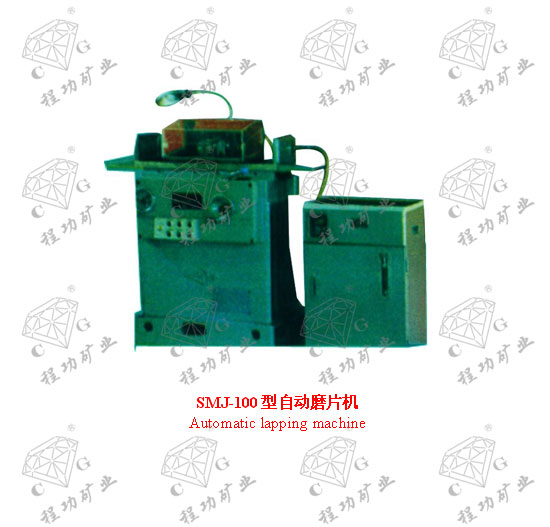

SMJ-100自动磨片机 automatic lapping machine	Φ100	4800	1.1/380	1130×860×1130	550
SPM-250双盘磨片机 Double disc lapping machine	Φ250	800-1200	1.1/380	1296×606×946	210
SPM-300双盘磨片机 Double disc lapping machine	Φ300	800-1200	1.1/380	1296×606×946	210
SM400Ⅰ双盘磨样机 Double disc polishing machine	Φ400	1400-2850	1.5/380	1000×500×800	180
SM400Ⅱ双盘磨样机 Double disc polishing machine	Φ400	1400-2850	1.5/380	1000×500×900	175
SM200自动双盘磨样机 Automatic double disc polishing machine	Φ200	1400	1.5/380	1296×606×946	90
SKM-160自动磨块机 Sutomatic polishing machine	Φ160	3200	1.1//380	1660×990×1210	1180
SPT-250调速抛光机 Polishing machine	Φ250	0-1000	0.355/220	600×360×356	40
SPZ-250自动抛光机 Automatic polishing machine	Φ250	0-1000	0.355/220	600×360×438	50
MPW-150万能磨抛机 Polishing machine	Φ150	0-500	0.355/220	600×360×356	50

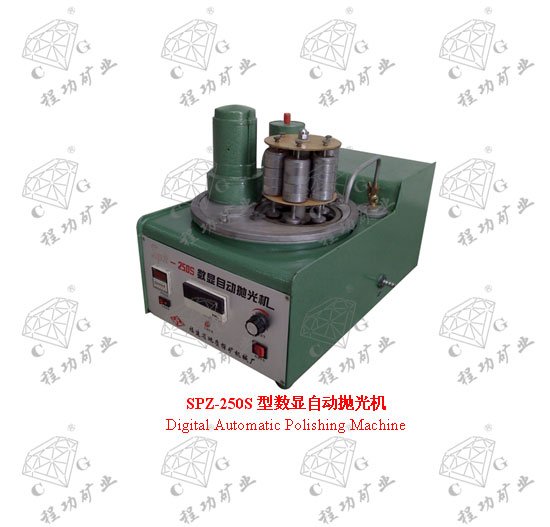

SPZ-250S数显自动抛光机 Digital Automatic Polishing Machine	Φ250	0-1000	0.355/220	600×360×356	50
