试验室CGJ型密封式化验制样粉碎机技术参数 T

SHARE TO:

Processing Materials Application Range Advantages Product Structure Technical Parameter

适用地质、矿山、冶金、煤炭、电力、化工、建材等行业科研单位、院校试验室内无污染进行物料粉碎，制样化验，机内带自动除尘器，具有噪音小、无粉尘、操作方便。本产品由原地矿部唯一指定企业生产，执行行业标准。

It serves to crush materials and prepare samples without pollution in laboratories of institutes in the trade of geology, mine, metallurgy, coal, chemical industry and building materials and so on. The machine contains an automatic dust remover.

CGJ、CGF型密封式系列化验制样粉碎机采用“压紧料钵防松动装置”轻便可靠。全密封式，无粉尘外溢，无需排风除尘。高频震动研磨，粉碎效率高，粒度均匀，不混样，无需筛分缩分。用户可根据样量选用不同品种；产品体积小，结构紧凑，不用安装，低噪音<60分贝，可在任何场所工作。

CGJE、CGF77E密封式电动压紧化验制样粉碎机实现了只用一个手指轻松点动就可完成压紧—制样粉碎—松开，全部过程操作简单。

GJE、F77E密封式电动压紧化验制样粉碎机采用最新“电动压紧装置”，该产品适应多向运动的特性，改变了通常的手动压紧，密封性能好，更轻便，更人性化，国内首创。

CGJ、CGF Model Sealed Serial Laboratory Sampling Crusher adopting compact earthen bowl loosening proof device is light weight and reliable. With full enclosure and no dust spillover, it requires no air-exhausting and dusting system. It features high frequency vibration grinding, high efficiency of comminution with uniform particle size, no blending of samples and no need of screening and contraction. Users can select the different varieties of products based on the sample volume. The product is small in volume and compact in structure without need of installation as well as lower noise <60 decibel. It can be operational at any place.

CGJ、CGF Model Sealed Serial Laboratory Sampling Crusher can be operated by simply inching with a finger for completion of compaction- comminution for sample preparation – loosening , simple operation in the whole process..

GJE、F77E Sealed Electric Laboratory Sampling Crusher introduces the latest electric compaction device. The product is adaptive to the performance of multi-direction movement and changes the usual manual compaction mode. It is desirable in sealing performance, light in weight , more personalized and first-ever in China .

GJ、MZ型密封式粉碎制样机技术参数 Sealed sampling crusher
型号规格 Model	料钵数 Cups Numbe	料钵材质 Material	装料量 Capa.	装料粒度 Feed size	粉碎时间 Crusher time	出料粒度 Output Size	电机功率 Power	质量 Weight
型号规格 Model	（个）		g/钵	mm	min	（目）	kw	kg
GJ-I（GJ-100）制样机	1	锰钢	100	<12	1-3	≤200	1.1	180
GJ-II制样机	1	锰钢	≤400	<25	1-3	≤200	1.1	200
GJ-A制样机	1	刚玉	50	<5	≤230	≤200	0.5	90
GJ-AX制样机	7	锰钢	7×100	<12	2-5	≤200	1.1	350
GJ-B制样机	3	刚玉	3×50	<5	20	≤400	1.1	160
1MZ-50振动磨	1	刚玉	50	<5	≤230	≤200	0.5	90
1MZ-100振动磨	1	锰钢	100	<12	1-3	≤200	1.1	180
1MZ-200振动磨	1	锰钢	≤200	<20	1-3	≤200	1.1	200
1MZ-400振动磨	1	锰钢	≤400	<25	1-3	≤200	1.1	200
2MZ-100振动磨	2	锰钢	2×100	<12	1-3	≤200	1.1	290
3MZ-50振动磨	3	刚玉	3×50	<5	20	≤400	1.1	160
3MZ-100振动磨	3	锰钢	3×100	<12	1-3	≤200	1.1	300
3MZ-200振动磨	3	锰钢	3×200	<20	2-5	≤200	1.1	350
4MZ-100振动磨	4	锰钢	4×100	<12	1-3	≤200	1.1	310
5MZ-100振动磨	5	锰钢	5×100	<12	2-5	≤200	1.1	330
6MZ-100振动磨	6	锰钢	6×100	<12	2-5	≤200	1.1	340
7MZ-100振动磨	7	锰钢	7×100	<12	2-5	≤200	1.1	350
MZL120振动磨	1	锰钢	连续进出料	<15	120g/min	≤250	1.1	350

注：以上料钵材料可用锰钢或刚玉定制

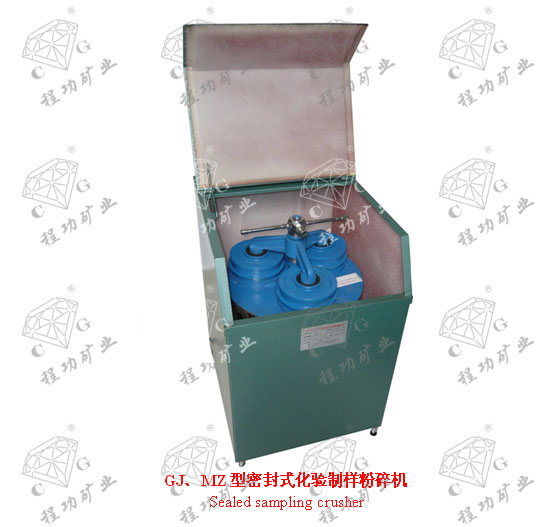

GJ、MZ型密封式化验制样粉碎机 Sealed sampling crusher

型号规格 Model	单位 Uite	GJ1×150 GJ1×300 GJ1×400	GJ2×150 GJ2×300	GJ3×150 GJ3×300	GJ4×150	GJ5×150	GJ6×150
进料粒度 Feed size	mm	≤5	≤5	≤5	≤5	≤5	≤5
出料粒度 Output size	(目)	≤240	≤240	≤240	≤240	≤240	≤240
粉碎时间 Crushing time	min	1-3	1-3	1-3	1-3	1-3	1-3
装料重量 Capacity	g	1×150 1×300 1×400	2×150 2×300	3×150 3×300	4×150	5×150	6×150
制样数 Sampling number	(个)	1	2	3	4	5	6
功率 Power	kw/v	1.1/380	1.1/380	1.1/380	1.5/380	1.5/380	1.5/380
外形尺寸 Overall dimensions	mm	710×550×960
质量Weight	kg	135 140 155	148 160	155 175	168	180	200

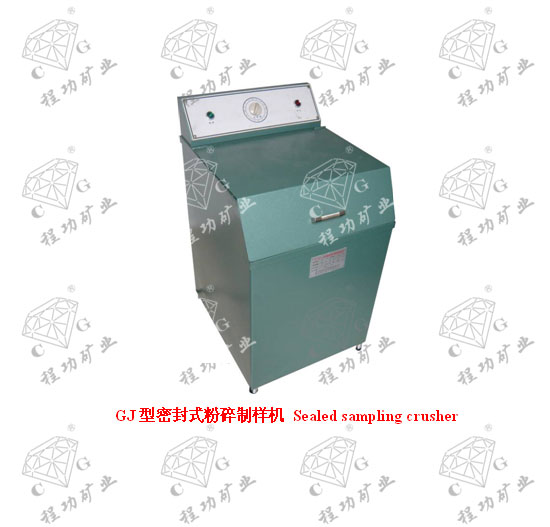

GJ型密封式粉碎制样机 Sealed sampling crusher

型号 Model	一次制样数 Cups umbe	装料粒度 Feed size	装料重量 Capacity	粉碎时间 Crusher time	出料粒度 Output size	功率 Power
型号 Model	（个）	mm	g/每钵	min	（目）	kw
CGJ100-1	1	<13	100×1	<2	≤200	1.1
CGJ100-2	2	<13	100×2	<2	≤200	1.1
CGJ100-3	3	<13	100×3	<2	≤200	1.5
CGJ100-4	4	<13	100×4	<3	≤200	1.5
CGJ100-5	5	<13	100×5	<3	≤200	1.5
CGJ100-7	7	<13	100×7	<3	≤200	1.5
CGJ200-1	1	<20	200×1	<3	≤200	1.5
CGJ200-2	2	<20	200×2	<3	≤200	1.5
CGJ200-3	3	<20	200×3	<3	≤200	1.5
CGJ200-4	4	<20	200×4	<3	≤200	1.5
CGJ400-1	1	<26	400×1	<3	≤200	1.5
CGJ400-2	2	<26	400×2	<3	≤200	1.5
CGJ400-3	3	<26	400×3	<3	≤200	1.5
CGJ400-4	4	<26	400×4	<3	≤200	1.5
CGJ500-1	1	<26	500×1	<3	≤200	1.5
CGJ1000-1	1	<26	1000×1	<3	≤200	1.5
CGJ(100/200)-Ⅰ	分别制	<13/<20	100/200	<2	≤200	1.5
CGJ(300/400)-Ⅱ	分别制	<23/26	300/400	<2	≤200	1.5
CGF77-1	1	<16	150×1	<2	≤200	1.1
CGF77-2	2	<16	150×2	<2	≤200	1.1
CGF77-3	3	<16	150×3	<2	≤200	1.5
CGF77-4	4	<16	150×4	<3	≤200	1.5
CGF77-5	5	<16	150×5	<3	≤200	1.5
CGF77-7	7	<16	150×7	<3	≤200	1.5

型号 Model	一次制样数 Cups numbe	装料粒度 Feed size	装料重量 Capacity	粉碎时间 Crusher time	出料粒度 Output size	功率 Power

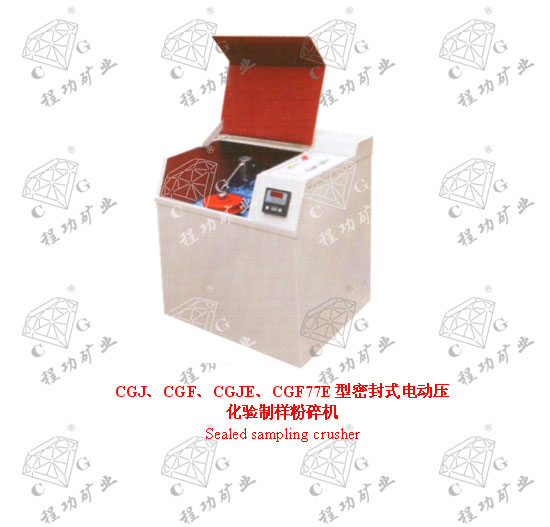

CGJE、CGF77E密封式电动压紧化验制样粉碎机技术参数 Sealed sampling crusher
	（个）	mm	g/每钵	min	（目）	kw
CGJE100-1	1	<13	100×1	<2	≤200	1.1
CGJE100-2	2	<13	100×2	<2	≤200	1.1
CGJE100-3	3	<13	100×3	<2	≤200	1.5
CGJE100-4	4	<13	100×4	<3	≤200	1.5
CGJE100-5	5	<13	100×5	<3	≤200	1.5
CGJE100-7	7	<13	100×7	<3	≤200	1.5
CGJE200-1	1	<20	200×1	<3	≤200	1.5
CGJE200-2	2	<20	200×2	<3	≤200	1.5
CGJE200-3	3	<20	200×3	<3	≤200	1.5
CGJE200-4	4	<20	200×4	<3	≤200	1.5
CGJE400-1	1	<26	400×1	<3	≤200	1.5
CGJE400-2	2	<26	400×2	<3	≤200	1.5
CGJE400-3	3	<26	400×3	<3	≤200	1.5
CGJE400-4	4	<26	400×4	<3	≤200	1.5
CGJE500-1	1	<26	500×1	<3	≤200	1.5
CGJE1000-1	1	<26	1000×1	<3	≤200	1.5
CGF77E-1	1	<16	150×1	<2	≤200	1.1
CGF77E-2	2	<16	150×2	<2	≤200	1.1
CGF77E-3	3	<16	150×3	<2	≤200	1.5
CGF77E-4	4	<16	150×4	<3	≤200	1.5
CGF77E-5	5	<16	150×5	<3	≤200	1.5
CGF77E-7	7	<16	150×7	<3	≤200	1.5
