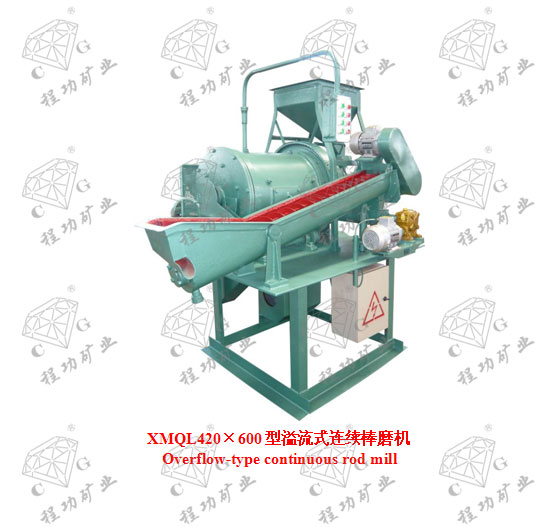

本机是集摆式给矿机、棒磨机、螺旋分级机、螺旋输送机等单机而成的闭路磨矿设备，可作为连续磨矿或研究测定矿石可磨性指标之用。亦可供选矿精选厂作磨矿设备使用，或供其他工业部门磨细物料之用。
This machine is closed-circuit grinding machine integrating oscillating feeder, rod mill, spiral classifier, screw conveyor, and other single machines. It can be used to continuously grind ores or study and test the grindability indexes of ores. It can also be used in ore dressing plants as ore grinding equipment or used in other industrial sectors to mill materials.
| 型号规格Model | 单位 Uite | XMBL-Φ420×600 |
| 磨筒尺寸 Drum size | mm | φ420×600 |
| 磨筒转速 Drum speed | r/min | 53 |
| 磨筒容积 Volume | L | 80 |
| 给料粒度 Feed size | mm | -6 |
| 出料粒度 Output size | mm | -0.5以下 |
| 电机功率 Power | kw | 1.5 |
| 处理量 Capacity | kg/h | 150 |
| 外形尺寸 Overall dimensions | mm | 1630×1260×1730 |
| 重 量 Weight | kg | 800 |
