Chinese

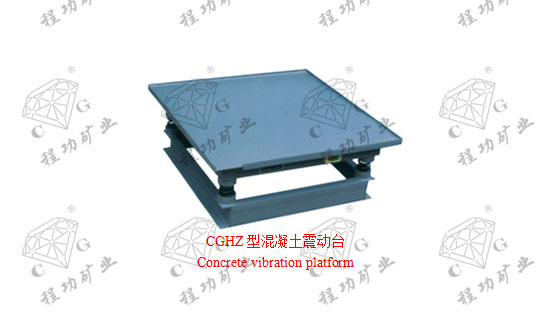

HR-1混凝土震动台 本震动台主要应用于建筑﹑ 公路﹑ 商品混凝土搅拌站及大专院校试验室混凝土的震实成型。
Concrete vibration platform model HR-1 is mainly designed for building, highway and commercial concrete batching plant and the compression of concrete in laboratories of universities and colleges.
技术参数
Technical Parameters
| 型号规格Model | CGHZ-1000×1000 | CGHZ-800×80 | CGHZ-500×500 | |
| 台面尺寸Table size | mm | 1000×1000 | 800×800 | 500×500 |
| 震动频率Vibration frequency | 次/min | 2860 | 2860 | 2860 |
| 震幅Amplitude | Mm | 0.3-0.6 | 0.3-0.6 | 0.3-0.6 |
| 电动功率Electric power | kw | 1.5 | 1.1 | 0.55 |
| ****裁重 The maximum weight cut |
kg | 200 | 150 | 50 |
