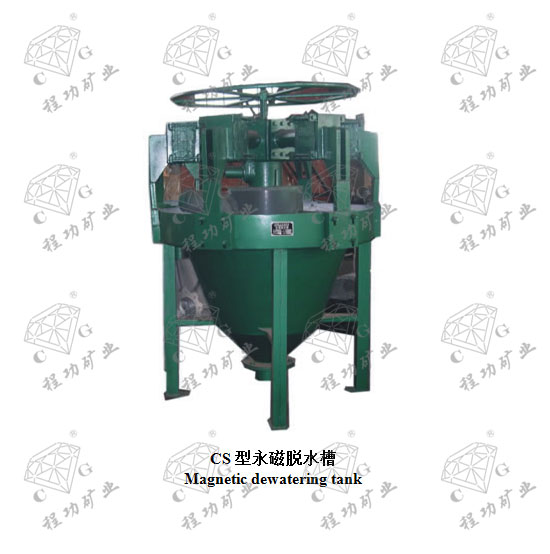

CS型永磁脱水槽 Magnetic dewatering tank
适用细粒强磁选矿物的脱泥、浓缩、脱水。 国家行业标准JB/T1664
This kind of equipment applies to desliming, concentration and dewatering of fine-grained strongly magnetic minerals. National Industry Standard JB/T1664
| 型号规格 Model | 上口直径 Dia | 槽体高度 Tank high | 沉降面积 Precipitation area | 磁感强度 Magnetic induction density | 溢流粒度 Overflow Viscosity | 处理能力 Catacity | 质量 Weight |
| mm | mm | m2 | MT | mm | t/h | t | |
| CS12 | Φ1200 | 1.5 | ≥30 | 0-1.5 | 46 | 1.54 | |
| CS16 | Φ1600 | 1390 | 2 | ≥30 | 0-1.5 | 45 | 1.98 |
| CS20 | Φ2000 | 1600 | 3 | ≥30 | 0-1.5 | 50 | 1.37 |
| CS20S | Φ2000 | 1650 | 3 | ≥30 | 0-1.5 | 50 | 2.3 |
| CS25 | Φ2500 | 1800 | 4.8 | ≥30 | 0-1.5 | 55 | 1.62 |
| CS30 | Φ3000 | 2000 | 7 | ≥30 | 0-1.5 | 60 | 2.12 |
