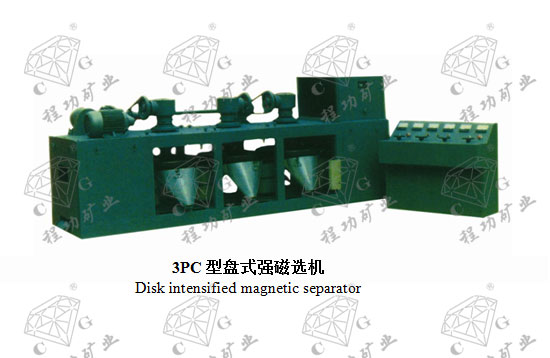

3PC型盘式强磁选机 Disk intensified magnetic separator

本机系盘式强磁选机，适用于钛铁矿、稀土矿、铬铁矿、钨、锡矿、褐铁矿、铌、钽矿、锆英石、金红石、独居石、红柱石、石榴石、兰晶石、长石、石英等各种有磁性差异矿物的分选或非金属矿物除铁。

通过本机一次可分选出4种产品，本机适用于干式选矿。

主机由给矿装置、弱磁滚筒、传动部分、物料输送装置、磁盘、电磁系统、机架等组成。电控部分由控制、调压、整流、仪表等元件组成。结构紧凑，参数稳定，安装简易，使用维护方便。

The device is a Dry Intensified Magnetic Separator, applicable for separations of ilmenite, rare earth ore, chromite, tungsten and tin ores, limonite, columbium and tantalum ores, zircon, rutile, monazite, andalusite, garnet, kyanite, feldspar, quartz and other minerals with magnetic differences or removal of iron in nonmetallic minerals.

4 varieties of products can be obtained by separation of the device.

Main device comprises feeding unit, weak magnetic roller, drive part, material conveying apparatus, magnetic disk, electromagnetic system, frame and others. The electric control section consists of components of control, voltage regulation, rectification, instrument and so on. It features compact structure, stable performance, easy installation and convenient operation and maintenance.

型号规格 Model	单位Uite	3PC-500	3PC-600	3PCX600
磁场强度 Magnetic intensity	毫特 Hauteur	距带面2mm 盘齿1700 Distance to beltsurface 2mm Disk teeth 1700	距带面2mm 盘齿1800 Distance to beltSurface 2mm Disk teeth 1800	距带面2mm 盘齿2000 Distance to belt 2mm Disk teeth 2000
磁盘数量 Number of magnetic disk	个 Piece	3	3	3
磁盘直径 Diameter of magnetic disk	mm	500	600	600
磁盘转速 Revolution of magnetic disk	r/min	25-40	22-38	22-32
电源 Power supply	V	380	380	380
激磁线圈 Exciting coil	组 Unit	4	4	4
配用电机 Matching motor	kw	0.75	1.5	1.5
激磁功率 Exciting power	kw	1.5	1.6	1.6
线圈温升 Coil temperature rise	℃	65	65	65
线圈额定电流 Rated current of coil	A	1.1-1.8	1.2-1.9	1.2-2.2
使用定额 Duty rating		连续 Continuous	连续 Continuous	连续 Continuous
供料宽度 Feed width	mm	210	300	300
原料粒度 Feed size	mm	≤2	≤2	≤2
处理量 capacity	kg/h	100-500	120-800	80-800
外形尺寸 Outside dimension	mm	2800×800×1220	3200×870×1160	3150×900×1250
质量Weight	kg	1900	2200	2300
