Gold Mining Equipment

    PS型砂泵 Sand pump

    SHARE TO:

    PS型砂泵是单级单吸离心泵,其主要特点是:流道宽敞,能通过较大的砾石,并能在较大的范围内变化流量。故能广泛应用于有色冶金、矿山采选和煤炭、电力、河坝清基等工程输送矿浆、泥砂、灰渣等物料。投资少、见效快、效率高、经济效益好。

    As a single stage single suction volute pump, the sand pump model PS features wide flow passage for fair-sized gravels and the flow regulation within a relatively large range. . Hence, this pump can be widely used to convey the materials like ore pulp, silt and slag etc. in metallurgy of non-ferrous metal, mining and concentration, coal, electric power and river dam foundation preparation projects etc. . This machine also features low cost, high effectiveness, high efficiency and good economic returns.

    型号规格 Model 流 量 Flow rate 扬程 Head 允许通过****石块
    Allows for maximum rock
    出矿口尺寸
    Size of the mine mouth
    功率 Power 外形尺寸
    Overall dimension
    重量 Weight
    m³/h m mm mm kw mm kg
    1PS 8.65 15 3 25 3 830×328×730 97
    11/2PS 15.6 23 4 38 5.5 1033×498×713 205
    2PS 25 24 10 50 7.5 1140×500×1000 280
    21/2PS 43 27 12 63 7.5 1300×490×1010 338
    4PS 80-140 10-30 38 100 11-30 1645×1095×1074 450
    5PS 230-300 29-36 40 125 37-55 1452×650×460 670
    6PS 240-380 25-45 75 150 75-115 2055×1140×1500 2300
    8PS 300-600 25-55 100 200 95-185 2312×1344×1785 3824

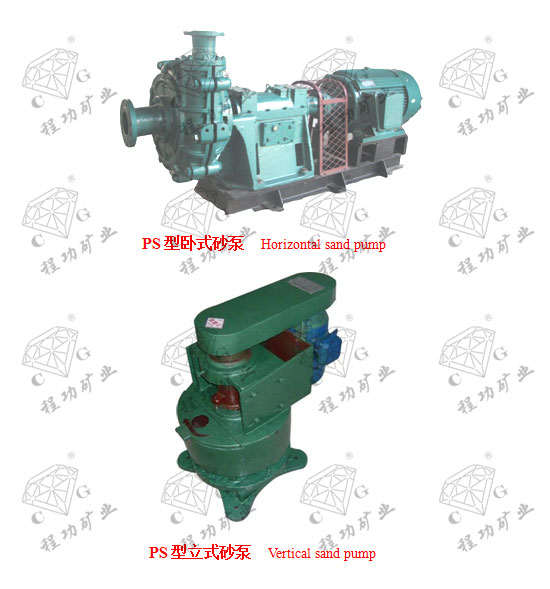

    PS型卧式砂泵  Horizontal sand pump  PS型立式砂泵  Vertical sand pump
