Sand Making Machine
Sand making machine is one of the commonly used machines in crushing production line and sand making production line.
Processing Materials
Limestone, clinker, coal, iron ore, sand stone, gypsum, blast furnace residue, coal stone, piece coal, and other ores in building material, mine, metallurgy and chemical industry.
Application Range
It is mainly used for all kinds of ores, cement, refractories, bauxite clinker, glass raw materials such as hard, hard materials, finely and the compression strength of the materials to be crushed should not exceed 140MPa and the humidity should not be higher than 15%. In the mechanism of building sand, stone and a variety of metallurgical slag is widely used in crushing, high production efficiency compared with other types of crusher.
Advantages and Characteristics
Advantages and Characteristics:
1.Big crushing ratio, grain-size can be adjusted arbitrarily.
2.Do not suffer plate hammer, lining board wear the impact.
3.No screen bar settings, crushing high water content, hydraulic large material clogging.
4.Using elastic and adjusting mechanism, not into broken material can self-control.
5.Long service life, low consumption,stable running,and simple structure.

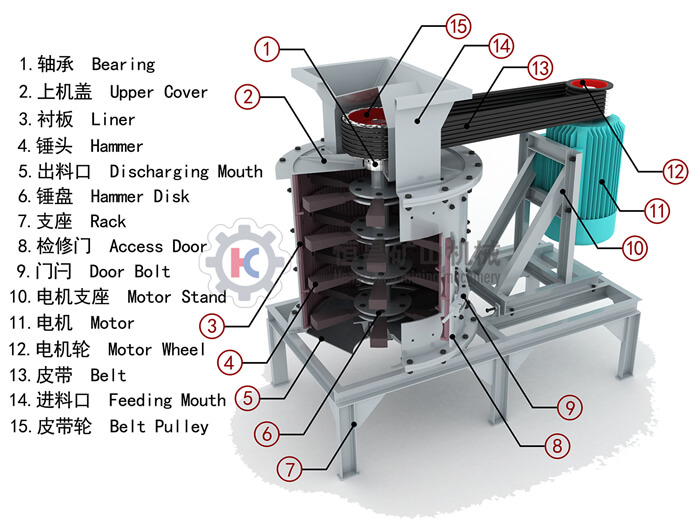

Product Structure
When the motor runs, it drives the central shaft; four lines of hammers are fixed on the central shaft, each line with four pieces of hammers. Materials are fed from top of the crusher; they are crushed by the high speed rotation hammers. There are liners around the crusher body to protect the crusher from damage. The materials are threw to the crushing cavity and impacted by the high rotating hammers and discharged out under the role of gravity, and the finial materials are sent from bottom of the crusher.
Technical Parameter
Model | Rotor diameter | Cylinder height | Rotation speed | Feeding size | Discharging size | Capacity | Power | Dimensions(L×W×H) |
600 | 550 | 750 | 1200 | 30 | 0-5 | 5-10 | 7.5 | 1300×730×1650 |
800 | 650 | 800 | 1180 | 50 | 0-5 | 10-20 | 22 | 2000×900×1800 |
1000 | 800 | 850 | 980 | 70 | 0-5 | 20-40 | 55 | 2700×1150×1850 |
1250 | 1000 | 850 | 780 | 100 | 0-5 | 30-70 | 75 | 2900×1350×1900 |
1500 | 1250 | 1000 | 650 | 100 | 0-5 | 40-80 | 110 | 3100×1900×2300 |
1750 | 1560 | 1410 | 600 | 100 | 0-5 | 50-100 | 132 | 3350×2100×2800 |
