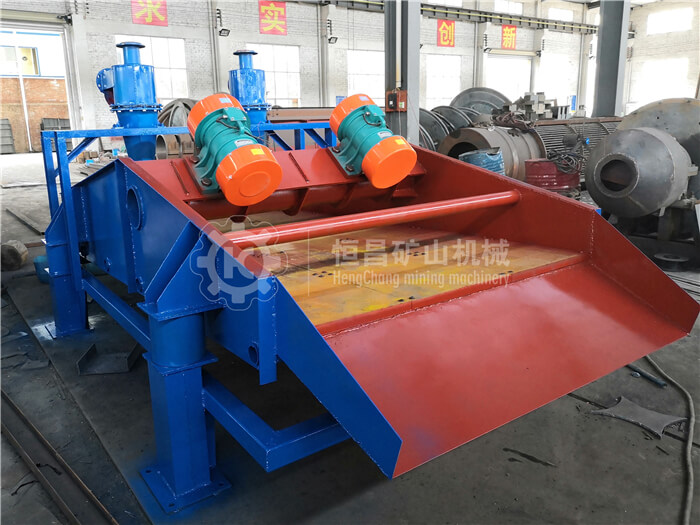

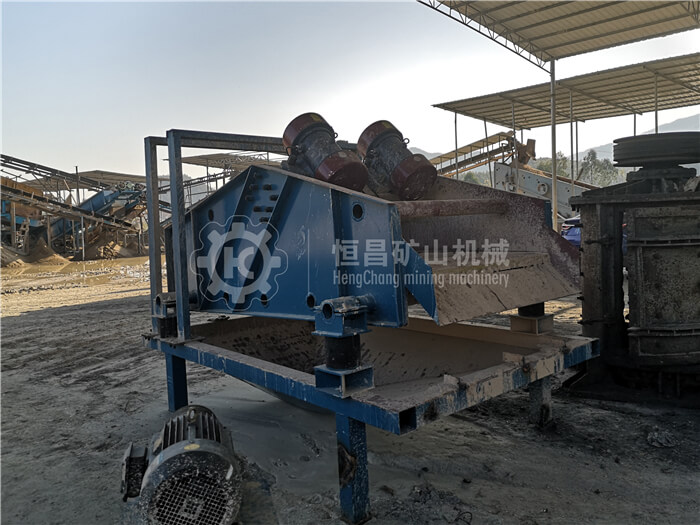

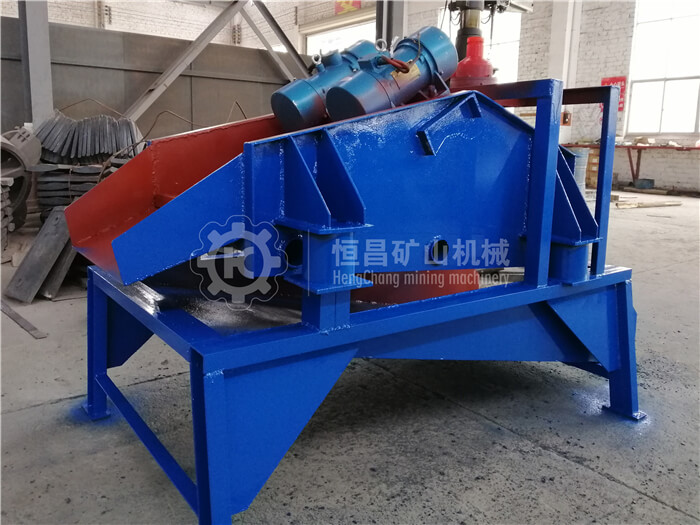

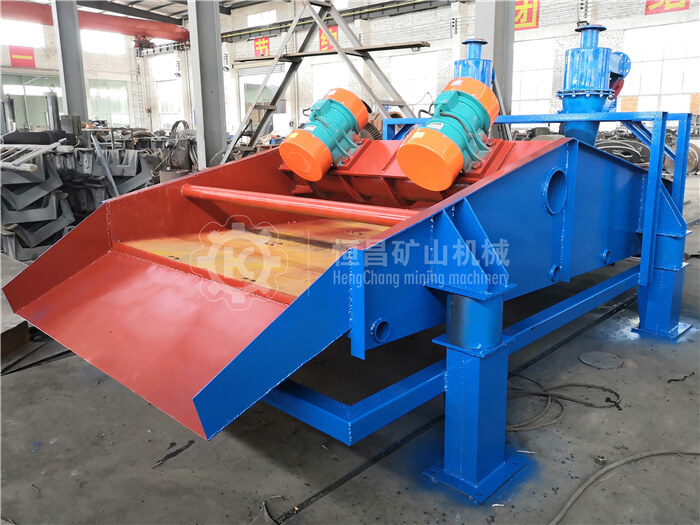

Dewatering Screen
Dewatering screen is also a kind of vibrating screen mainly for the dewatering of the mine tailings and sand.
Processing Materials
Metallic and non-metallic ores (gold, silver, copper, tantalum, barite, tungsten, quartz, coal, limestone etc.), aggregate (rocks, river stone, blast rock, lava rock), construction waste (asphalt, concrete, bricks, pavers, etc.), sand and some other materials.
Application Range
It can be widely used in tailings dry stacking, fine mineral dewatering, chip removing, carbon-in-pulp separation etc.

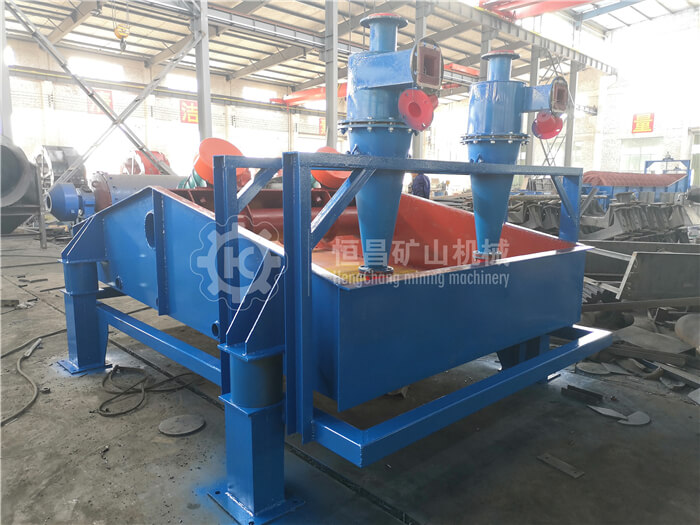

The efficient multi frequency dewatering screen is particularly suitable for processing fine minerals. In addition, it combined with hydro cyclone is more efficient and can be widely used for tailings dry stacking, concentrate dewatering and so on.
Advantages and Characteristics
Advantages and Characteristics:
- 1. High dehydrating ratio with new type vibrating motors.
- 2. Stable structure and strong exciting force, easy maintenance.
- 3. Cross beam and screen body connect with high strength bolts, no welding and easy to remove and maintenance.
- 4. Polyurethane screen (PU) high screening ratio, big capacity,long service life and no blocking.
- 5. Low noise, less energy consumption, high screening efficiency.

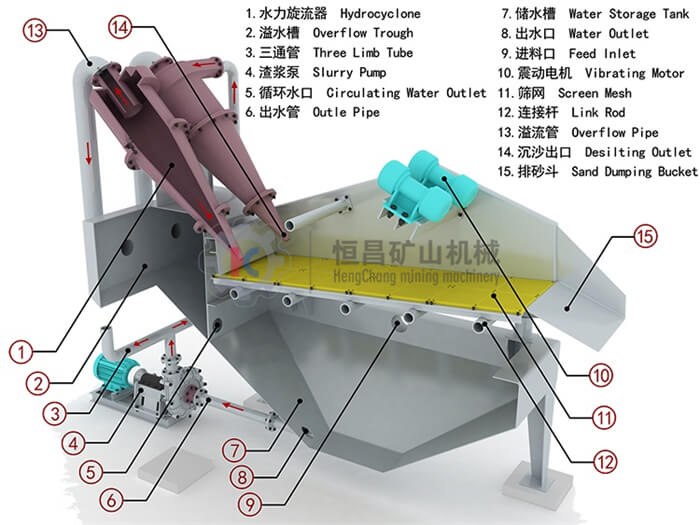

Product Structure
Dewatering screen adopts double vibration motor as power supply: The two motors that rotate synchronously and reversely and centrifugal force are produced by two groups of eccentric block. This makes the screen body periodical to-and-fro moving along the direction of straight line, which is for the purpose of dehydration. The screen frame is connected by the high-intensity bolts, so the structure is stable and durable.
Technical Parameter
Model | Area of screen | Power | Capacity | Feeding size | Weight | Dimension |
TS0720 | 1.4 | 0.75×2 | 5-10 | ≤10 | 0.8 | 2300×1000×750 |
TS0920 | 1.8 | 1.1×2 | 10-20 | ≤10 | 1.2 | 2300×1200×750 |
TS1020 | 2 | 1.5×2 | 10-30 | ≤10 | 1.6 | 2300×1300×750 |
TS1225 | 3 | 2.2×2 | 50-80 | ≤10 | 2.1 | 2800×1500×800 |
TS1530 | 4.5 | 3×2 | 100-120 | ≤10 | 3.2 | 3300×1800×800 |
TS1536 | 5.4 | 3×2 | 120-150 | ≤10 | 3.8 | 3683×1890×1421 |
TS1836 | 6.4 | 4×2 | 150-180 | ≤10 | 4.8 | 3715×2466×1855 |
TS1845 | 8.1 | 4×2 | 200-220 | ≤10 | 6.5 | 4515×2449×1987 |
TS2148 | 8.8 | 7.5×2 | 220-240 | ≤10 | 7.6 | 4915×2785×2142 |
