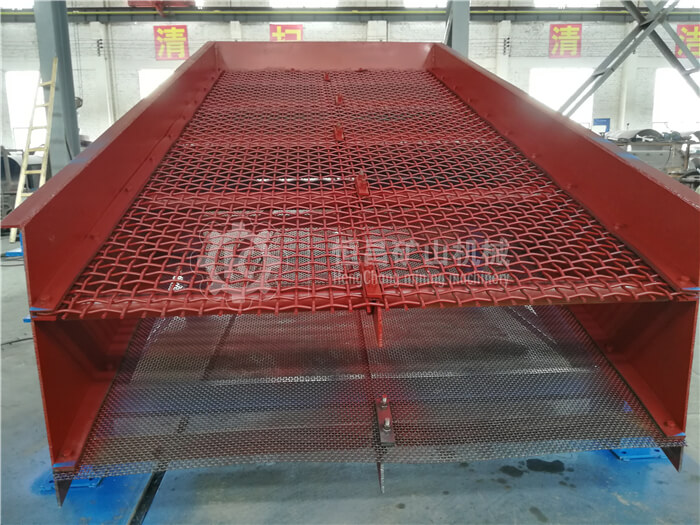

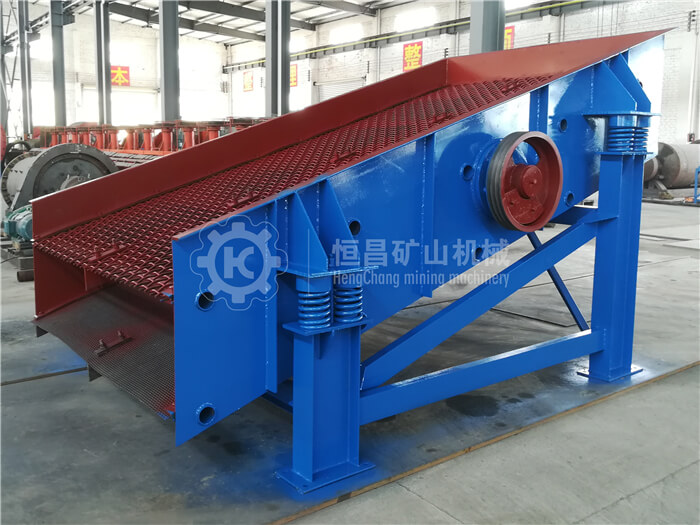

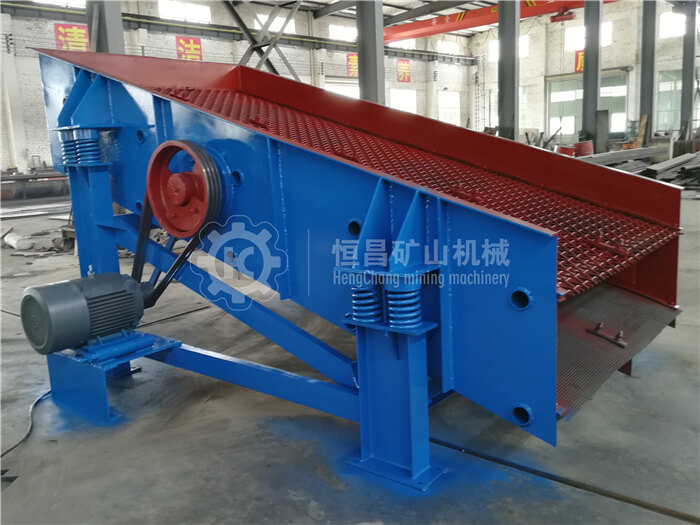

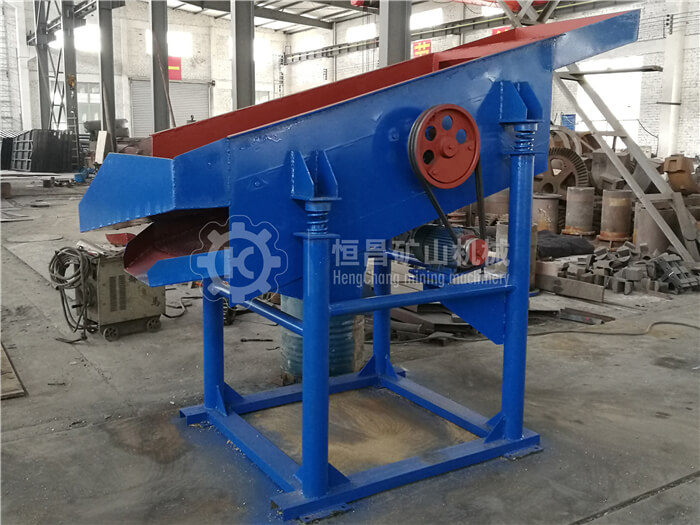

Vibrating Screen

Vibrating screen is a kind of screening machine to screen the different size materials.

SHARE TO:

Processing Materials Application Range Advantages Product Structure Technical Parameter

Processing Materials

Metallic and non-metallic ores (gold, silver, copper, tantalum, barite, tungsten, quartz, coal, limestone etc.), aggregate (rocks, river stone, blast rock, lava rock), construction waste (asphalt, concrete, bricks, pavers, etc.), and some other materials.

Application Range

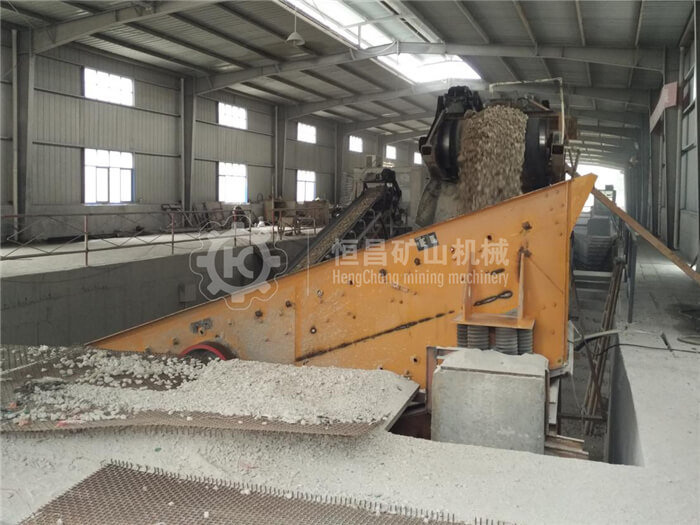

Vibrating screen is mainly used in coal processing, metallurgy, mine, power station, water conservancy project, building industry, light industry, and chemical industry. It is efficient screening machine for the classification of bulk material such as coal, minerals, coke etc.

Advantages and Characteristics

Advantages and Characteristics:

1.Stable structure and strong exciting force.

2.Handy maintenance and durability.

3.Screen easy to disassemble and replace.

4.Less electricity power consumption.

5.Materials blocked in meshes can be automatically out.

6.Reasonable mechanical structure, low noise and high screening efficiency.

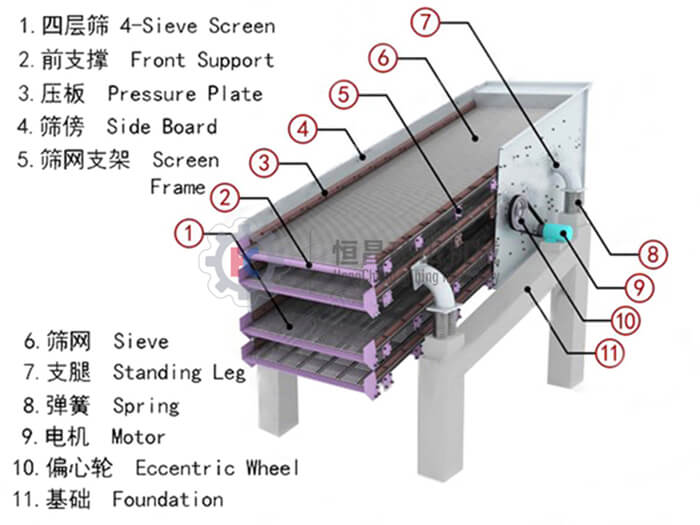

Product Structure

The motor makes the electric excite rotate speedily through the tire coupling. The continuous forced circular motions of sieve box were achieved through the powerful centrifugal force. Under the influence of sieve box, the materiel are tossed forward successively on the mesh, they were classified as thrown up, and the particles smaller than the mesh size were sieved out when they are falling, so that the classification of material could be achieved.

Technical Parameter

Model	Screen Layer	Max. Feeding Size (mm)	Capacity (t/h)	Mesh Size (mm)	Angle (° )	Motor Power (kw)	Weight (kg)
SZZ900×1800	1	40	20-25	1-25	15-25	2.2	420
2SZZ900×1800	2	40	40-50	1-25	15-25	2.2	570
SZZ1250×2500	1	200	70-100	1-40	15-25	5.5	1020
2SZZ1250×2500	2	200	70-100	1-40	15-25	5.5	1320
SZZ1500×3000	1	200	90-200	1-50	15-25	7.5	1650
2SZZ1500×3000	2	200	90-200	1-50	15-25	7.5	2870
2SZZ1500×4000	2	200	90-200	1-50	15-25	15	4240
SZZ1500×4800	1	200	100-230	1-50	15-25	15	3750
2SZZ1500×4800	2	200	100-230	1-50	15-25	15	5515
SZZ1800×3600	1	200	100-280	1-150	15-25	18.5	4500
2SZZ1800×3600	2	200	100-280	1-150	15-25	18.5	5616
SZZ1800×5400	1	200	120-320	1-150	15-25	18.5	4980
2SZZ1800×5400	2	200	120-320	1-150	15-25	18.5	6769
SZZ2100×6000	1	400	150-400	1-200	15-25	22	5423
2SZZ2100×6000	2	400	150-400	1-200	15-25	30	8980
SZZ2400×6000	1	400	180-500	1-200	15-25	30	8500
2SZZ2400×6000	2	400	180-500	1-200	15-25	30	10200
