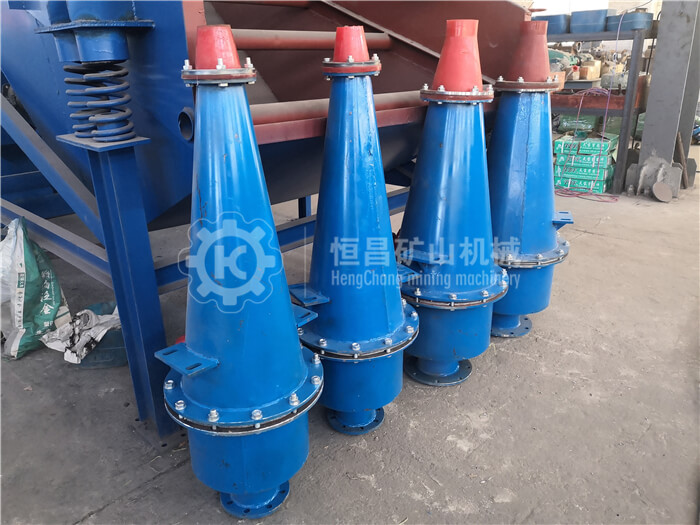

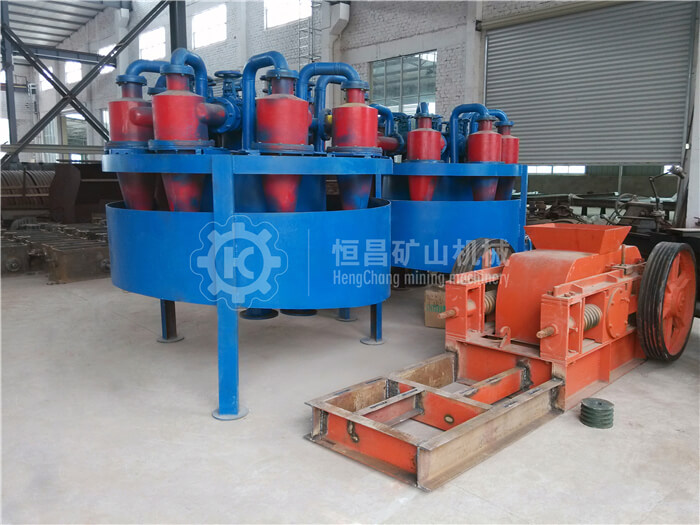

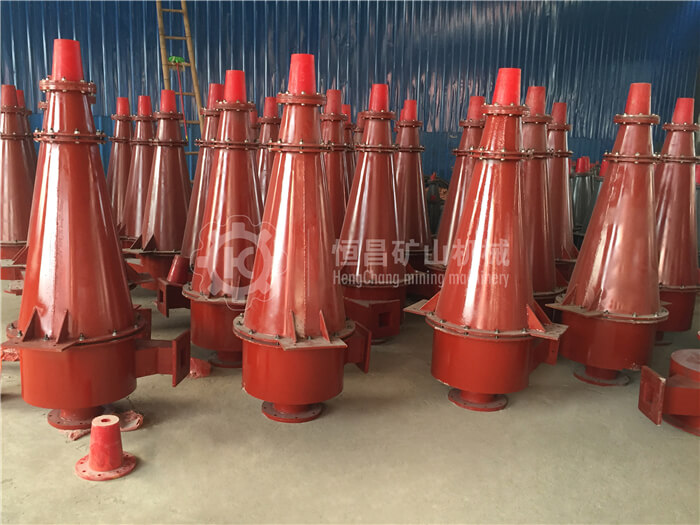

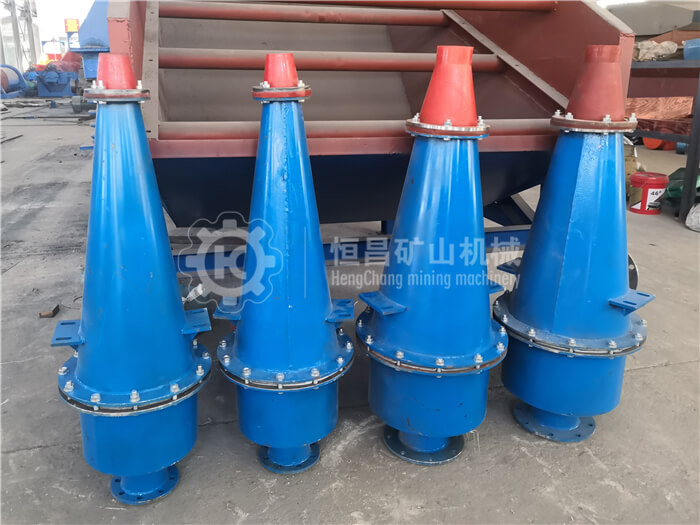

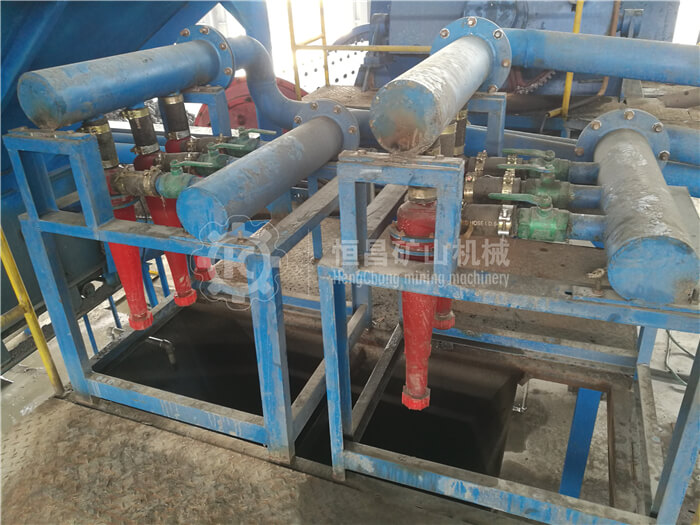

Hydrocyclone

Hydrocyclone, also called Hydraulic cyclone, which is a high efficient grading and de-sliming equipment of fine-particle materialis and it is mainly applied to the process of second paragraph grinding, coarse or concentrates re-grinding and

SHARE TO:

Processing Materials Application Range Advantages Product Structure Technical Parameter

Processing Materials

Processing Materials: Gold, silver, lead, zinc, copper, molybdenum, iron, lead, manganese, tungsten, cement, ceramics, barite, bauxite, limestone, gypsum, calcium carbonate, coal, graphite, feldspar, potash feldspar, phosphorus ore, fluorite, clay and some other materials.

Application Range

It is widely used in concentrator of nonferrous and ferrous, chemical, pharmaceutical, ceramics and other industries.

Advantages and Characteristics

Advantages and Characteristics:

1.Simple structure, light and nimble, no moving part

2.Large processing capacity

3.The classification particle size can reach 10μm

4.Low maintenance charge, easy to attach and detach, save floor space, low construction expense

Product Structure

The working principle of hydrocyclone is centrifugal sedimentation, when two phases (or three phases) mixed liquid is fed into hydrocyclone by a certain pressure liquid and produces strong three-dimensional-elliptic rotational movement. Due to the different density of particles, the centrifugal force, the centripetal buoyancy and drag force is different. So most coarse particles (or heavy phase) are discharged from cyclone underflow outlet, and the fine particles (or light phase) from the overflow tube, so as to achieve separation.

Technical Parameter

Model	Specification	Capacity (m³/h)	Separation Particle Size (μm)	Diameter of Overflow Port (mm)	Diameter of Dust- Setting Nozzle (mm)	Inlet Pressure (MPa)
FX-10	10	0.05-1	1-5	2-4	1-2	0.060-0.15
FX-25	25	0.3-1	2-10	5-8	2-5	0.060-0.15
FX-50	50	1.5-3	5-74	11-18	3-12	0.060-0.15
FX-75	75	2-5	5-74	15-20	6-12	0.060-0.15
FX-100	100	5-12	10-74	20-40	8-18	0.060-0.15
FX-125	125	8-15	20-74	25-40	8-18	0.060-0.15
FX-150	150	10-23	25-74	30-45	8-22	0.060-0.15
FX-200	200	17-38	28-80	40-65	16-32	0.060-0.15
FX-250	250	24-53	30-82	65-100	16-40	0.060-0.15
FX-300	300	40-100	36-90	65-120	20-40	0.060-0.15
FX-350	350	56-118	40-100	80-120	30-70	0.060-0.15
FX-375	375	74-157	42-105	90-135	30-70	0.060-0.15
FX-450	450	90-192	44-110	100-150	30-70	0.060-0.15
FX-500	500	128-300	50-115	130-220	35-100	0.060-0.15
FX-600	600	200-468	57-125	160-260	65-110	0.060-0.15
FX-660	660	237-524	60-130	180-280	80-150	0.060-0.15
