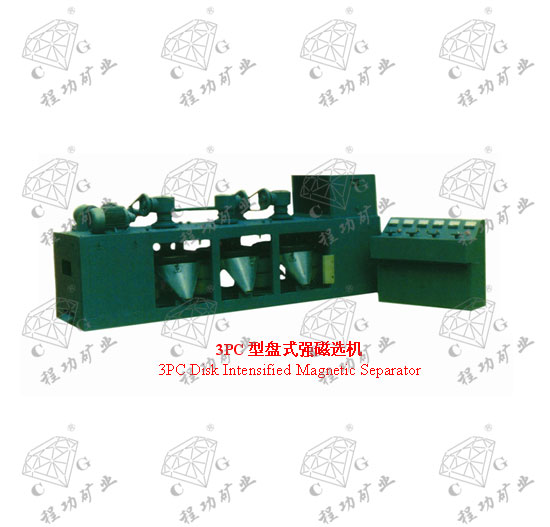

试验室3PC-600型盘式强磁选机技术参数 T

SHARE TO:

Processing Materials Application Range Advantages Product Structure Technical Parameter

本机系于式强磁选机，适用于钛铁矿、稀土矿、铬铁矿、钨、锡矿、褐铁矿、铌、钽矿、锆英石、金红石、独居石、红柱石、石榴石、兰晶石、长石、石英等各种有磁性差异矿物的分选或非金属矿物除铁。

通过本机一次可分选出4种产品。

主机由给矿装置、弱磁滚筒、传动部分、物料输送装置、磁盘、电磁系统、机架等组成。电控部分由控制、调压、整流、仪表等元件组成。结构紧凑，性能稳定，安装简易，使用维护方便。

The device is a Dry Intensified Magnetic Separator, applicable for separations of ilmenite, rare earth ore, chromite, tungsten and tin ores, limonite, columbium and tantalum ores, zircon, rutile, monazite, andalusite, garnet, kyanite, feldspar, quartz and other minerals with magnetic differences or removal of iron in nonmetallic minerals.

4 varieties of products can be obtained by separation of the device.

Main device comprises feeding unit, weak magnetic roller, drive part, material conveying apparatus, magnetic disk, electromagnetic system, frame and others. The electric control section consists of components of control, voltage regulation, rectification, instrument and so on. It features compact structure, stable performance, easy installation and convenient operation and maintenance.

型号规格	单位	3PC-500	3PC-600	3PCX600
磁场强度	毫特	距带面2㎜盘齿1700	距带面2㎜盘齿1800	距带面2㎜盘齿2000
磁盘数量	个	3	3	3
磁盘直径	mm	500	600	600
磁盘转速	r/min	25～40	22-38	22-32
电源	V	380	380	380
激磁线圈	组	4	4	4
配用电机	kw	0.75	1.5	1.5
激磁功率	kw	1.5	1.6	1.6
线圈温升	℃	65	65	65
线圈额定电流	A	1.1～1.8	1.2-1.9	1.2-2.2
使用定额		连续	连续	连续
供料宽度	mm	210	300	300
原料粒度	mm	≤2	≤2	≤2
处理量	kg/h	100～500	120-800	80-800
外形尺寸	mm	2800×800×1220	3200×870×1160	3150×900×1250
质量	kg	1900	2200	2300

Model & Specification	Uite	3PC-500	3PC-600	3PCX600
Magnetic intensity	Hauteur	Distance to belt surface 2㎜ Disk teeth 1700	Distance to belt Surface 2㎜ Disk teeth 1800	Distance to belt 2㎜ Disk teeth 2000
Number of magnetic disk	Piece	3	3	3
Diameter of magnetic disk	mm	500	600	600
Revolution of magnetic disk	r/min	25～40	22-38	22-32
Power supply	V	380	380	380
Exciting coil	Unit	4	4	4
Matching motor	kw	0.75	1.5	1.5
Exciting power	kw	1.5	1.6	1.6
Coil temperature rise	℃	65	65	65
Rated current of coil	A	1.1～1.8	1.2-1.9	1.2-2.2
Duty rating		Continuous	Continuous	Continuous
Feed width	mm	210	300	300
Feed size	mm	≤2	≤2	≤2
Processing capacity	kg/h	100～500	120-800	80-800
Outside dimension	mm	2800×800×1220	3200×870 ×1160	3150×900 ×1250
Mass	kg	1900	2200	2300
