·SGB、SGZ、SGD、XGZ型刮板输送机 Apron conveyor

SHARE TO:

Processing Materials Application Range Advantages Product Structure Technical Parameter

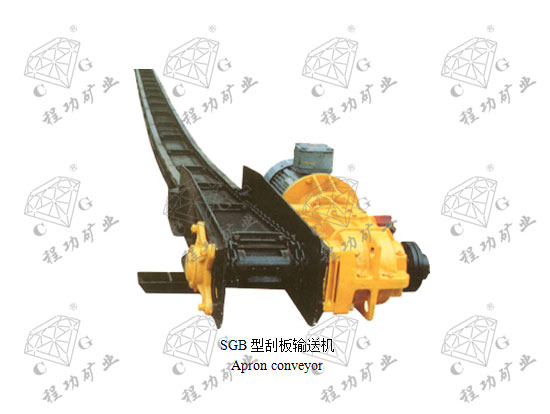

SGB、SGZ、SGD、XGZ型刮板输送机 Apron conveyor

边双链刮板输送机Duble chain Apron conveyor
型号规格Model	设计长度 Length	输送量 Capa.	链速 Chain speed	功率Power	中槽部尺寸 Intermediate	链规格 Chain size	质量Weight
型号规格Model	m	t/h	m/s	kw	mm	mm	t
SGB280/7.5	40	30	0.63	7.5	1200×280×125	10×40	2.34
SGB280/11	60	30	0.63	11	1200×280×125	10×40	3.27
SGB420/40	100	100	0.86	40	1200×420×180	18×64	16
SGB420/22	80	60	0.86	22	1200×420×150	14×50	9.22
SGB420/30	100	80	0.86	30	1200×420×150	14×50	11.4
SGB420/30T	100	80	0.86	30	1200×420×150	14×50	11.4
SGB420/40TX	100	150	0.86	40	1200×420×180	18×64	16
SGB520/44	100	80	0.79	2×22	1200×520×150	14×50	13
SGB520/30	100	80	0.79	30	1200×520×150	14×50	11
SGB520/37	100	120	0.79	2×18.5	1200×520×150	14×50	12.5
SGB520/40	100	120	0.79	40	1200×520×150	14×50	14.5
SGB620/40	100	150	0.86	40	1500×620×180	18×64	17.6
SGB620/40T	100	150	0.86	40	1500×620×180	18×64	17.6
SGB620/80	160	150	0.86	2×40	1500×620×180	18×64	28
SGB620/80T	160	150	0.86	2×40	1500×620×180	18×64	35.6
SGB630/75	120	250	0.868	75	1500×630×190	18×64	49.1
SGB630/150	200	250	0.868	2×75	1500×630×190	18×64	81.1
SGB630/150D	200	250	0.868	2×75	1500×630×190	18×64	86.7
SGB630/150C	200	250	0.868	2×75	1500×630×190	18×64	87.6
SGB630/180	180	400	1	2×90	1500×630×222	22×86	100
SGB630/220	180	450	1	2×110	1500×630×222	22×86	100
SGB630/264	180	450	1	2×132	1500×630×222	22×86	100.4
SGB730/320	200	700	1.1	2×160	1500×680×222	26×92
SGB730/400	200	800	1.1	2×200	1500×680×222	26×92
SGB730/500	200	900	1.1	2×250	1500×680×222	26×92
SGB730/264	200	650	1.1	2×132	1500×680×222	26×92
SGB764/264	200	600	1.1	2×132	1500×764×222	26×92
SGB764/320	200	700	1.1	2×160	1500×764×222	26×92
SGB764/400	200	800	1.1	2×200	1500×764×222	26×92
SGB764/500	200	900	1.1	2×250	1500×764×222	26×92
SGB764/630	200	1000	1.1	2×315	1500×764×222	26×92
中双链刮板输送机Duble chain Apron conveyor
SGZ630/220	180	450	1	2×110	1500×630×222	22×86
SGZ730/320	200	600	0.9	2×160	1500×730×222	26×92
SGZ764/400	200	800	1.1	2×200	1500×764×222	26×92
SGZ830/630	230	1200	1	2×315	1500×780×290	34×126
中单链刮板输送机Single chain Apron conveyor
SGD280/7.5	40	30	0.63	7.5	1200×280×125	10×40	2.5
SGD280/11	60	30	0.63	11	1200×280×125	10×40	2.9
SGD320/17B	80	40	0.59	17	1200×320×150	14×50	6.5
SGD320/18.5	80	40	0.59	18.5	1200×320×150	14×50	6.6
SGD320/22	100	40	0.59	22	1200×320×150	14×50	8
SGD420/22	80	60	0.66	22	1200×420×150	14×50	8.5
SGD420/30	100	80	0.88	30	1200×420×150	14×50	9.8
SGD630/180	180	400	1	180	1500×630×222	26×92
SGD630/220	180	450	1	220	1500×630×222	26×92
SGD730/320	200	600	0.9	320	1500×730×222	30×108

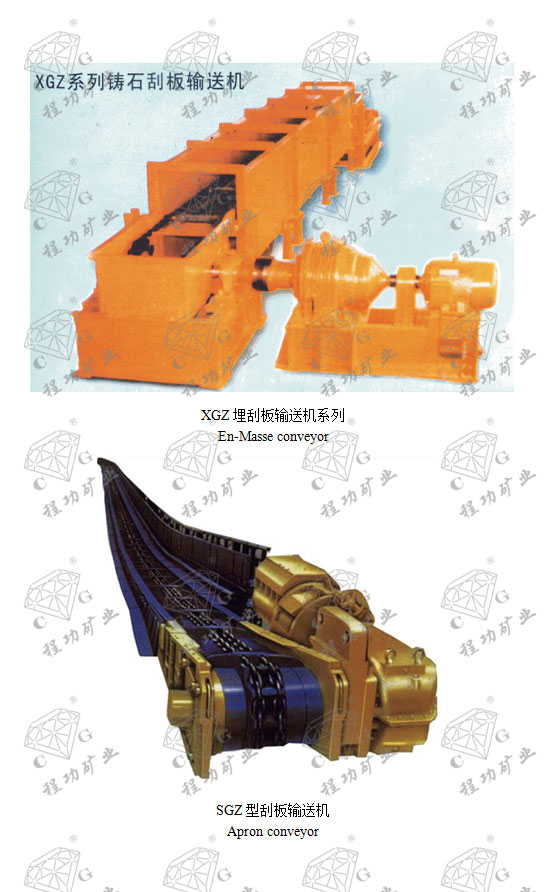

铸石槽刮板输送机Apron conveyor with casting stone trough
XGZ6	66	300	≤0.76	＜18.5	槽宽600
XGZ8	66	500	≤0.76	＜37	800
XGZ10	45	600	≤0.76	＜37	1000
XGZ12	65	800	≤0.76	＜75	1200
XGZ14	55	1000	≤0.76	＜75	1400
