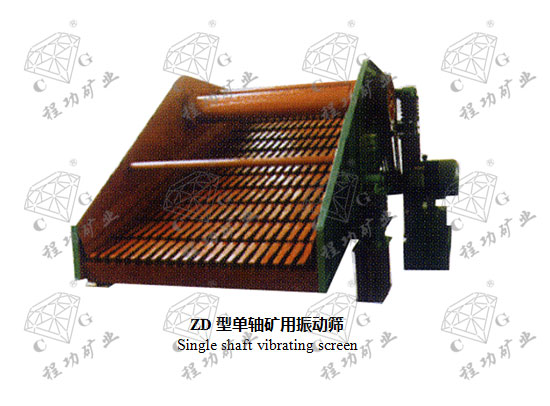

ZD型单轴矿用振动筛 Single shaft vibrating screen
本系列振动筛适用于煤炭、电力、建筑、轻工、化工等对中细粒物料分级，具有效率高、透筛性好等优点。
单轴筛运动轨迹为圆，该筛结构简单、维修方便、作业可靠。
Suitable for fine and medium size materials classifying in coal, power, mine, construction, light and chmical industries.
Circular movement, high efficiency, simple in structure, easy to repair and reliable performance.
| 型号规格 Model | 层数 No.of Decks |
面积 Area | 筛孔尺寸 OpeningSize |
给料粒度 FeedSize |
生产能力 Output | 功率 Power | 外形尺寸 Outside dimension |
重量 Weight |
| m2 | mm | mm | t/h | kw | mm | kg | ||
| ZD918 | 1 | 1.6 | 1-25 | <60 | 10-30 | 2.2 | 2150×1418 ×575 | 553 |
| 2ZD918 | 2 | 1.6 | 1-25 | <50 | 10-30 | 2.2 | 2200×1418 ×565 | 702 |
| ZD1224 | 1 | 2.9 | 6-40 | <100 | 70-210 | 4 | 2500×2150 ×1340 | 1130 |
| 2ZD1224 | 2 | 2.9 | 6-40 | <100 | 70-210 | 4 | 2600×2200 ×1780 | 1545 |
| ZD1530 | 1 | 4.5 | 6-50 | <100 | 90-270 | 5.5 | 3100×2690 ×1570 | 1650 |
| 2ZD1530 | 2 | 4.5 | 6-50 | <100 | 90-270 | 5.5 | 3200×2690 ×2250 | 2260 |
| ZD1540 | 1 | 6 | 6-50 | <100 | 90-270 | 7.5 | 4000×2505 ×2028 | 2070 |
| 2ZD1540 | 2 | 6 | 6-50 | <100 | 90-270 | 7.5 | 4200×2600 ×2660 | 2850 |
| ZD1836 | 1 | 6.5 | 6-56 | <150 | 100-300 | 11 | 3670×2990 ×1807 | 1960 |
| ZD2160 | 1 | 12 | 10-50 | <150 | 150-350 | 22 | 6676×2420 ×1600 | 6529 |
